Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 20.1 Inch |
|---|---|---|---|
| Resolution: | 1600(RGB)×1200 , UXGA | Display Mode: | MVA, Normally Black, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LQ201U1LW28 Antiglare 20.1 inch Sharp LCD Panel with 408×306 mm Active Area
LQ201U1LW28 Specification
| Panel Size : | 20.1 inch |
| Dot Resolution : | 1600(RGB)×1200 (UXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 99 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.085×0.255 mm (H×V) |
| Pixel Pitch : | 0.255×0.255 mm (H×V) |
| Weight : | 3.20Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 408×306 mm (H×V) |
| Bezel Area : | 413.0×311.0 mm (H×V) |
| Outline Dimension : | 432×331.5 mm (H×V) |
| Outline Depth : | 25.0 (Typ.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | MVA, Normally Black, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25 (Max.)(9 points) |
| Sunlight Readable : | N |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.

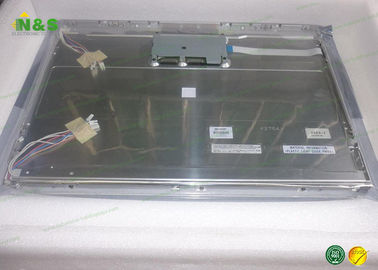

LQ201U1LW28 Picture
