Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 20.1 Inch |
|---|---|---|---|
| Resolution: | 1600(LCR)×1200 , UXGA | Display Mode: | ASV, Normally Black, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
20.1 inch LQ201U1LW11 SHARP LCM with 1600×1200 700 1000:1 Grayscale CCFL LVDS
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
LQ201U1LW11 Product Information
| Panel Size : | 20.1 inch |
| Dot Resolution : | 1600(LCR)×1200 (UXGA) |
| Pixel Configuration : | LCR Vertical Stripe |
| Pixel Density : | 99 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.085×0.255 mm (H×V) |
| Pixel Pitch : | 0.255×0.255 mm (H×V) |
| Weight : | 3.80Kgs (Max.) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 408×306 mm (H×V) |
| Bezel Area : | 413.2×311.2 mm (H×V) |
| Outline Dimension : | 436×335 mm (H×V) |
| Outline Depth : | 27.5 (Typ.) mm |
| Holes & Brackets : | Side mounting holes (8-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | ASV, Normally Black, Transmissive |
| Brightness : | 700 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | Grayscale (8-bit) |
| Response Time : | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.294; Wy:0.309 |
| White Variation : | 1.25 (Max.)(5 points) |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.

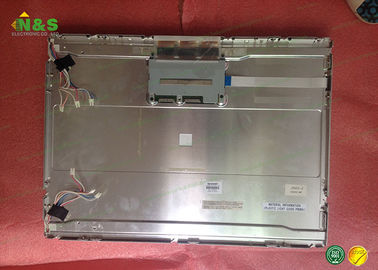

LQ201U1LW11 Picture
