Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ056A3AG01R |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.6 Inch |
| Resolution: | 320(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ056A3AG01R 5.6 inch Sharp LCD Panel Normally White with 114.2×83.5 mm
LQ056A3AG01R Product Information
| Panel Brand : | SHARP | |
| Panel Model : | LQ056A3AG01R | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 5.6 inch | |
| Resolution : |
|
|
| Display Mode : | TN, Normally White, Transmissive | |
| Active Area : | 114.2×83.5 mm | |
| Outline : | 140×102.7 mm | |
| Surface : |
|
|
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 60:1 (Typ.) | |
| Display Colors : | Full color | |
| Response Time : | 15/20 (Typ.)(Tr/Td) | |
| Viewing Angle : |
|
|
| Lamp Type : | 1 pcs CCFL Embedded (Inverter) | |
| Signal Interface : | Analog RGB + Composite Video (NTSC/PAL) , 24 pins | |
| Input Voltage : | 12.0V (Typ.) |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
| Panel Size : | 5.6 inch | |
| Dot Resolution : | 320(RGB)×234 | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 71 PPI | |
| Aspect Ratio : |
|
|
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.119×0.357 mm (H×V) | |
| Pixel Pitch : | 0.357×0.357 mm (H×V) | |
| Weight : |
|
|
| Active Area : | 114.2×83.5 mm (H×V) | |
| Bezel Area : | 120.0×89.4 mm (H×V) | |
| Outline Dimension : | 140×102.7 mm (H×V) | |
| Outline Depth : | 20.0 (Typ.) mm | |
| Holes & Brackets : |
|
|
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.

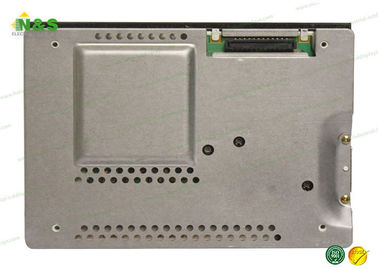

LQ056A3AG01R Picture
