Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ043T5DG02 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 4.3 Inch |
| Resolution: | 480(RGB)×234 | Display Mode: | Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ043T5DG02 Sharp LCD Panel 4.3" LCM 480×234 500 262K WLED
LQ043T5DG02 Product Information
| Panel Brand : | SHARP | |
| Panel Model : | LQ043T5DG02 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 4.3 inch | |
| Resolution : | 480(RGB)×234 | |
| Display Mode : |
| |
| Active Area : | 95.4×53.24 mm | |
| Outline : | 107.7×65.5 mm | |
| Surface : | ||
| Brightness : | 500 cd/m² (Typ.) | |
| Contrast Ratio : | ||
| Display Colors : | 262K (6-bit) | |
| Response Time : | ||
| Viewing Angle : | | |
| Lamp Type : | WLED |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
| Panel Size : | 4.3 inch |
| Dot Resolution : | 480(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 124 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Pixel Pitch : | 0.2385×0.2275 mm (H×V) |
| Weight : | 65g (Max.) |
| Active Area : | 95.4×53.24 mm (H×V) |
| Outline Dimension : | 107.7×65.5 mm (H×V) |
| Outline Depth : | 8.15 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.

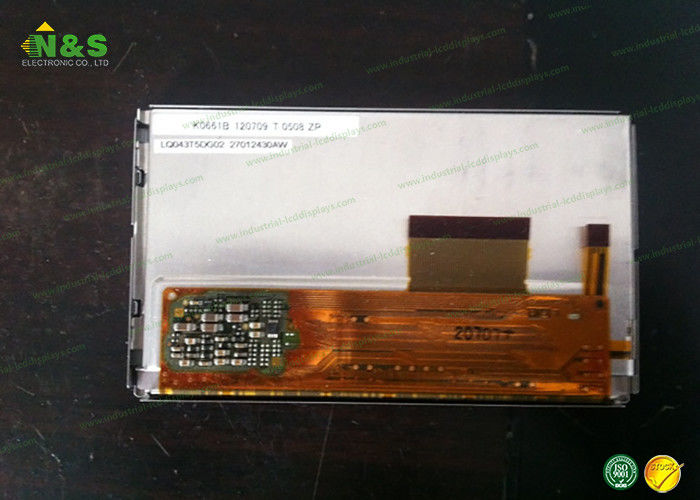

LQ043T5DG02 Picture
