4.3 inch LQ043T1DH01 Sharp LCD Panel or garmin 205w lcd screen +touch screen

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

4.3 inch LQ043T1DH01 Sharp LCD Panel or garmin 205w lcd screen +touch screen

4.3 inch LQ043T1DH01  Sharp LCD Panel or garmin 205w lcd screen +touch screen
4.3 inch LQ043T1DH01  Sharp LCD Panel or garmin 205w lcd screen +touch screen 4.3 inch LQ043T1DH01  Sharp LCD Panel or garmin 205w lcd screen +touch screen

Large Image :  4.3 inch LQ043T1DH01 Sharp LCD Panel or garmin 205w lcd screen +touch screen

Product Details:
Place of Origin: korea
Brand Name: Sharp
Certification: ISO9001
Model Number: LQ043T1DH01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 Working Days after order confirmation
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

4.3 inch LQ043T1DH01 Sharp LCD Panel or garmin 205w lcd screen +touch screen

Description
Panel Brand: SHARP Panel Model: LQ043T1DH01
Panel Type: A-Si TFT-LCD , LCM Panel Size: 4.3 Inch
Resolution: 480×272(RGB) , WQVGA Display Mode: TN, Normally White, Transmissive
High Light:

sharp lcd display panels

,

sharp lcd flat screen

4.3 inch LQ043T1DH01 Sharp LCD Panel or garmin 205w lcd screen +touch screen



LQ043T1DH01  Detail



Panel Brand : SHARP
Panel Model : LQ043T1DH01
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 4.3 inch
Resolution : 480×272(RGB) , WQVGA
Display Mode :
TN, Normally White, Transmissive
Active Area : 95.04×53.86 mm
Outline : 105.5×67.2×5.3 mm
Surface : Antiglare, Hard coating (2H)
Brightness : 360 cd/m² (Typ.)
Contrast Ratio : 300:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 48%
Response Time : 30/30 (Typ.)(Tr/Td)
Viewing Angle : 45/45/20/55 (Typ.)(CR≥10) (L/R/U/D)
Frequency :

  http://www.panelook.com/too-templates/en/images/icon/icon_question.gif

  http://www.panelook.com/too-templates/en/images/icon/icon_question.gif
60Hz
Lamp Type : 9S1P WLED Without Driver
Signal Interface : Parallel RGB (1 ch, 6-bit) + SPI , 67 pins
Input Voltage : 1.8/3.3/2.8V (Typ.)(VDDIO/VCI)



What is our advantage?

Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.

Delivery Quantity: 50-100 cartons shipped by DHL every week

Supply Ability: 100 pcs Panels per day.

Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)

Warranty: 12 months.



Panel Size : 4.3 inch
Dot Resolution : 480×272(RGB) (WQVGA)
Pixel Configuration : RGB Horizontal Stripe
Pixel Density : 128 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.198×0.066 mm (H×V)
Pixel Pitch : 0.198×0.198 mm (H×V)
Weight : http://www.panelook.com/too-templates/en/images/icon/icon_question.gif
60±5g
Surface : Antiglare, Hard coating (2H)
Active Area : 95.04×53.86 mm (H×V)
Bezel Area : 97.2×56.0 mm (H×V)
Outline Dimension : 105.5×67.2 mm (H×V)
Outline Depth : 5.05±0.25 mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Embeded (4-wire Resistive)



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LK315T3HC1K SHARP 31.5" 1366×768
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160



Packaging & Delivery

Packaging Details:

Safey package

Plastic trays inside

2 layes of cartons

Fragile sign on top

Can be customize 3.5 inch spare parts auo used lcd panel

Delivery Detail: 1-3 Working Days

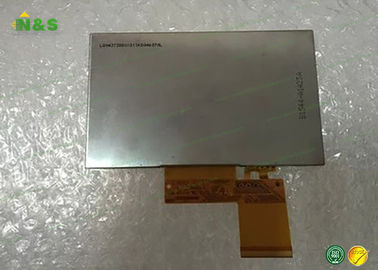

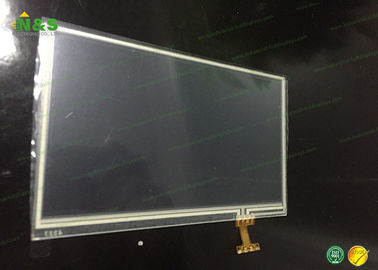

LQ043T1DH01 Picture



4.3 inch LQ043T1DH01  Sharp LCD Panel or garmin 205w lcd screen +touch screen 3

4.3 inch LQ043T1DH01  Sharp LCD Panel or garmin 205w lcd screen +touch screen 4
