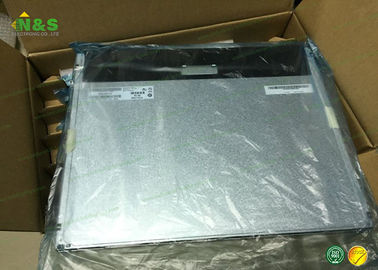

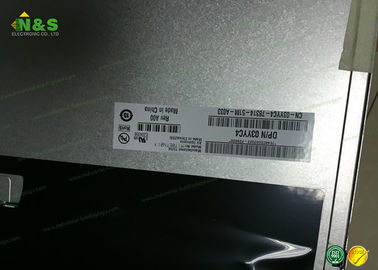

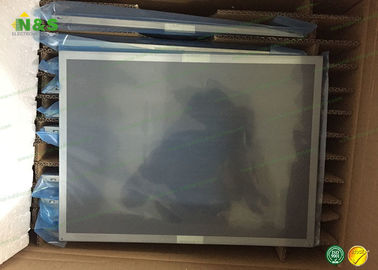

Original 17.0 inch M170ETN01.1 auo display panel a - Si TFT LCD Panel with 1280*1024

Original 17.0 inch M170ETN01.1 auo display panel a - Si TFT LCD Panel with 1280*1024
Original 17.0 inch M170ETN01.1 auo display panel a - Si TFT LCD Panel with 1280*1024 Original 17.0 inch M170ETN01.1 auo display panel a - Si TFT LCD Panel with 1280*1024 Original 17.0 inch M170ETN01.1 auo display panel a - Si TFT LCD Panel with 1280*1024 Original 17.0 inch M170ETN01.1 auo display panel a - Si TFT LCD Panel with 1280*1024

Large Image :  Original 17.0 inch M170ETN01.1 auo display panel a - Si TFT LCD Panel with 1280*1024

Product Details:
Place of Origin: Japan/Taiwan
Brand Name: AUO LCD Panel
Certification: ISO9001
Model Number: M170ETN01.1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 500PCS/DAY

Original 17.0 inch M170ETN01.1 auo display panel a - Si TFT LCD Panel with 1280*1024

Description
Panel Brand: AUO Pixel Density: 96 PPI
Holes & Brackets: Side Mounting Holes (4-M3) On Left, Right Bezel Bezel Area: 341.72×274.14 Mm (H×V)
Resolution: 1280(RGB)×1024 , SXGA Landscape Or Portrait: Landscape Type
Panel Size: 17.0 Inch Form Factor: Flat Rectangle Display
High Light:

auo display panel

,

auo lcd screen



Original 17.0 inch M170ETN01.1 auo display panel a - Si TFT LCD Panel with 1280*1024



Product details:



Panel Brand : AUO
Panel Model : M170ETN01.1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 17.0 inch
Resolution : 1280(RGB)×1024 , SXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 337.92×270.336 mm
Outline : 358.5×296.5×10.8 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 72%
Response Time : 3.8/1.2 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 9S4P WLED    Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)



Panel Size : 17.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 1.27Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 337.92×270.336 mm (H×V)
Bezel Area : 341.72×274.14 mm (H×V)
Outline Dimension : 358.5×296.5 mm (H×V)
Outline Depth : 7.7/10.8 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without



AUO M170ETN01.1 Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 3.8/1.2 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Typ./Max.)(9 points)



17.0", 1280×1024, 8-bit, LVDS, 2D, WLED, Flat, Panel Hot Model



Panel Model Size Type Resolution cd/m2 C/R Backlight Color
M170ETN01.1 17.0" Panel 1280×1024 250 1000:01:00 WLED 16.7M
G170EG01 V1 17.0" Panel 1280×1024 350 800:01:00 WLED 16.7M
M170EGE-L20 17.0" Panel 1280×1024 250 1000:01:00 WLED 16.7M
LQ170E1LG21 17.0" Panel 1280×1024 350 1000:01:00 WLED 16.2M
G170ETN01.0 17.0" Panel 1280×1024 350 1000:01:00 WLED 16.7M
LB170E01-SL01 17.0" Panel 1280×1024 400 1000:01:00 WLED 16.7M
G170ETN02.0 17.0" Panel 1280×1024 400 800:01:00 WLED 16.7M
TX43D21VC0CAA 17.0" Panel 1280×1024 350 1000:01:00 WLED 16.7M
TX43D22VC0CAA 17.0" Panel 1280×1024 290 1000:01:00 WLED 16.7M
MT170EN01 V.F 17.0" Panel 1280×1024 250 1000:01:00 WLED 16.7M





N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.

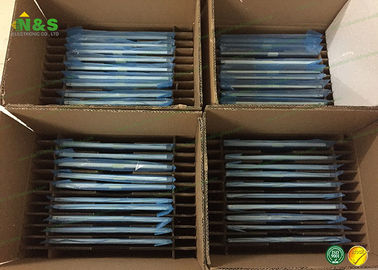

5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.

7) Feel free to contact to us if there is any problems during the shipment process.





Questions & Answers:

Q1: How can you trust us?
- We are a professional team for the LCD panel international trade already for 6 years. We own the more professional & more competitive sourcing line & agency for the LCD Screen panels.
Q2: When can I get the update price?
- Within 24 hours after we get your inquiry.
Q3: What is your product capacity per day?
- 500-1000 pcs/day. We test each pcs LCD panels before shipment.



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
A060SE02 V1 AUO 6.0" 800×600
A090XE01 V6 AUO 9.0" 1024×768
A090XE01 V5 AUO 9.0" 1024×768
A043SE01 V3 AUO 4.3" 600×800
H283QN00 V6 AUO 2.8" 240×320
M270DAN01.0 CELL AUO 27.0" 2560×1440
H644DAN01.1 AUO 6.5" 1080×1920
