Product Details:
|
| Panel Model: | LS037V7DD06 | Panel Type: | CG-Silicon , Panel |
|---|---|---|---|
| Brightness: | 100 Cd/m² (Typ.) | Contrast Ratio: | 100:1 (Typ.)(Transmissive) 5:1 (Typ.)(Reflective) |
| Viewing Angle: | 40/40/40/40 (Typ.)(CR≥2) (L/R/U/D) | Lamp Type: | WLED |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
56.16*74.88 mm LS037V7DD06 Industrial LCD for Mobile Phone panel
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience inindustrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Panel Brand : | SHARP |
| Panel Model : | LS037V7DD06 |
| Panel Type : | CG-Silicon , Panel |
| Panel Size : | 3.7 inch |
| Resolution : | 480(RGB)×640 , VGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 56.16×74.88 mm |
| Outline : | 65×90 mm |
| Brightness : | 100 cd/m² (Typ.) |
| Contrast Ratio : | 100:1 (Typ.)(Transmissive) 5:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/40/40 (Typ.)(CR≥2) (L/R/U/D) |
| Lamp Type : | WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 51 pins |
| Input Voltage : | 5.0/3.3/8.0/-4.0/-8.0V (Typ.)(VSHA/VSHD/VDD/VSSD/GVSS) |
| Panel Size : | 3.7 inch |
| Dot Resolution : | 480(RGB)×640 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 217 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.039×0.117 mm (H×V) |
| Pixel Pitch : | 0.117×0.117 mm (H×V) |
| Weight : | 39g (Typ.) |
| Active Area : | 56.16×74.88 mm (H×V) |
| Bezel Area : | 59.8×78.5 mm (H×V) |
| Outline Dimension : | 65×90 mm (H×V) |
| Outline Depth : | 3.35 (Typ.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |

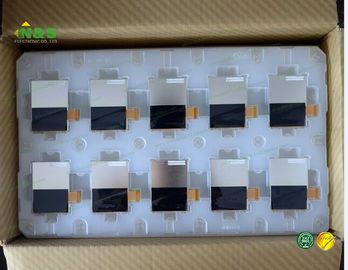

Details Pictures for LS037V7DD06 Industrial LCD
