Product Details:
|
| Brightness: | 130 Cd/m² (Typ.) | Contrast Ratio: | 100:1 (Typ.)(Transmissive) 2.5:1 (Typ.)(Reflective) |
|---|---|---|---|
| Viewing Angle: | 40/40/40/40 (Typ.)(CR≥2) (L/R/U/D) | Frequency: | 60Hz |
| Panel Size: | 3.7 Inch | Resolution: | 480(RGB)×640 , VGA |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
3.7 inch 56.16*74.88 mm Normally White LS037V7DD05 Sharp LCD Display Panel
| Panel Brand : | SHARP |
| Panel Model : | LS037V7DD05 |
| Panel Type : | CG-Silicon , Panel |
| Panel Size : | 3.7 inch |
| Resolution : | 480(RGB)×640 , VGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 56.16×74.88 mm |
| Outline : | 65×90.4 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 130 cd/m² (Typ.) |
| Contrast Ratio : | 100:1 (Typ.)(Transmissive) 2.5:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 22% |
| Response Time : | 20/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/40/40 (Typ.)(CR≥2) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 61 pins |
| Input Voltage : | 3.3/5.0/8.0/-4.0/-8.0V (Typ.)(VSHD/VSHA/VDD/VSSD/VEE) |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
FAQ
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4:How long is the lead time?
A:The lead time is about 2-3 working days after receipt of payment.
Q5:Do you accept sample order?
A:Yes,sample order is welcome.
Q6:How can I get the quotation?
A:Please enquire viaSkype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| Panel Size : | 3.7 inch |
| Dot Resolution : | 480(RGB)×640 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 217 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.039×0.117 mm (H×V) |
| Pixel Pitch : | 0.117×0.117 mm (H×V) |
| Weight : | TBD |
| Surface : | Hard coating (3H) |
| Active Area : | 56.16×74.88 mm (H×V) |
| Outline Dimension : | 65×90.4 mm (H×V) |
| Outline Depth : | 4.3 (Typ.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |

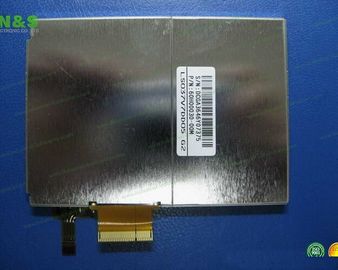

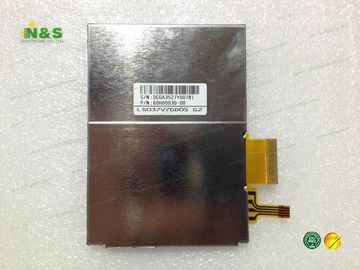

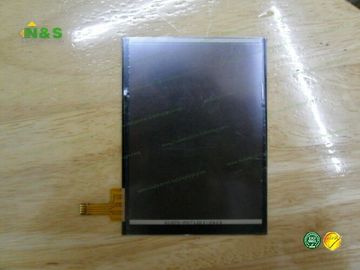

Details Pictures for LS037V7DD05 Sharp LCD Display Panel
