Product Details:
|
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 8.8 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×240 , HVGA | Brightness: | 220 Cd/m² (Typ.) |
| Display Colors: | 262K (6-bit) | Lamp Type: | 2 Pcs CCFL |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LQ088H9DR01U Sharp LCD Panel 8.8 inch with 209.28*78.48 mm
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
| Panel Brand : | SHARP |
| Panel Model : | LQ088H9DR01U |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 8.8 inch |
| Resolution : | 640(RGB)×240 , HVGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 209.28×78.48 mm |
| Outline : | 231.6×103.6 mm |
| Brightness : | 220 cd/m² (Typ.) |
| Display Colors : | 262K (6-bit) |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 31 pins |
| Panel Size : | 8.8 inch |
| Dot Resolution : | 640(RGB)×240 (HVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 77 PPI |
| Aspect Ratio : | 8:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.109×0.327 mm (H×V) |
| Pixel Pitch : | 0.327×0.327 mm (H×V) |
| Weight : | 370g (Max.) |
| Active Area : | 209.28×78.48 mm (H×V) |
| Outline Dimension : | 231.6×103.6 mm (H×V) |
| Outline Depth : | 14.4 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
We Can Do for You:
1) One-to-one service with efficient& professional support;
2) Protection of your design and all your private information;
3) We could supply hard-to-findLCD screen replacements;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

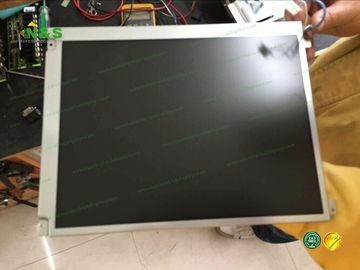

Details Pictures for LQ088H9DR01U Sharp LCD Panel
