Product Details:
|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 152.4×91.44 Mm |
|---|---|---|---|
| Outline: | 165×105.5×15.3 Mm | Viewing Angle: | 65/65/55/65 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency: | 60Hz | Lamp Type: | 1 Pcs CCFL |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
165*105.5*15.3 mm 7.0 inch LQ070Y5DR04 Sharp Touch Panel Automotive Display panel
| Panel Brand : | SHARP |
| Panel Model : | LQ070Y5DR04 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 152.4×91.44 mm |
| Outline : | 165×105.5×15.3 mm |
| Surface : | Antiglare, Antireflection |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 100:1 (Min.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/55/65 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.)(VCC) |
SHARP LQ070Y5DR04 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 100 : 1 (Min.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/55/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |

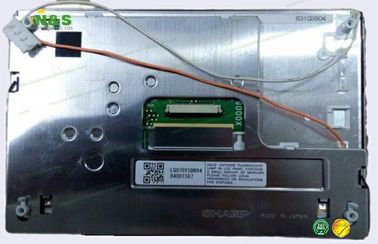

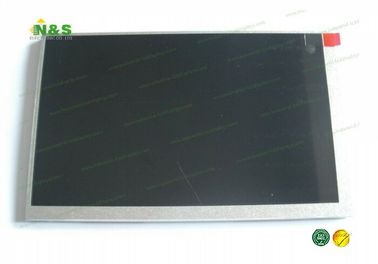

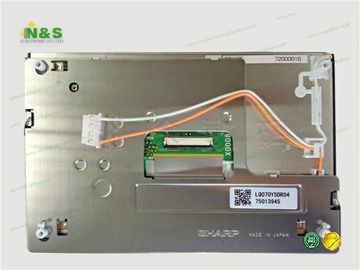

Details Pictures for LQ070Y5DR04 Sharp Touch Panel
