Product Details:
|
Frequency: | 60Hz | Contrast Ratio: | 800:1 (Typ.) |
---|---|---|---|
Brightness: | 330 Cd/m² (Typ.) | Shape Style: | Flat (PCBA Flat, Depth 3.4~4.0mm) |
Panel Size: | 15.4 Inch | Aspect Ratio: | 16:10 (H:V) |
Panel Brand: | LG Display | Resolution: | 1440(RGB)×900 , WXGA+ |
High Light: | lg lcd display,lg replacement screen |
New and Original 15.4 inch LP154WP4-TLA1 with 330cd/m², high resolution 1440*900
Trade Terms :
1. Packing: Anti-shaking wooden cabinet /Air flight case/carton
2. Shipping port: Shenzhen. China
3. Shipping freights are quoted according to your requests
4. Delivery time:5-15 working days
5. 3 years warranty ,lifelong maintaining. In the Maintenance period, free of all maintenance charges. After Maintenance period,only charge the material costs fees.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LB060S01-FD01 | LG Display | 6.0" | 800×600 |
LD470DUJ-SFE2 | LG Display | 47" | 1920×1080 |
LC650EQK-FGK1 | LG Display | 65" | 3840×2160 |
LH470M01-SH01 | LG Display | 4.7" | 540×960 |
LH250Q01-TH03 | LG Display | 2.5" | 320×240 |
LH320H02-SH03 | LG Display | 3.2" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LG Display LP154WP4-TLA1 Mechanical Features
Panel Size : 15.4 inch
Dot Resolution : 1440(RGB)×900 (WXGA+)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 110 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0767×0.2301 mm (H×V)
Pixel Pitch : 0.2301×0.2301 mm (H×V)
Weight : 440g (Max.)
Surface : Glare (Haze 0%), Hard coating, Antireflection
Active Area : 331.344×207.09 mm (H×V)
Outline Dimension : 342.85×229.87 mm (H×V)
Outline Depth : 4.03 (Max.) mm
Shape Style : Flat (PCBA Flat, Depth 3.4~4.0mm)
Holes & Brackets : Face mounting holes (6 pcs) on left, right, up slugs
Landscape or Portrait : Landscape type
Touch Panel : Without
LG Display LP154WP4-TLA1 Optical Features
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 330 cd/m² (Typ.) |
Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
Display Color : | 262K (6-bit) |
Color Gamut : | 72% NTSC (CIE1931) |
Response Time : | 16 (Typ.)(Tr+Td) |
Viewing Angle : | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
White color Chromaticity | Wx:0.313; Wy:0.329 |
White Variation : | 1.43/1.67 (Typ./Max.)(160 points) |
LG Display LP154WP4-TLA1 General Features
Panel Brand : LG Display

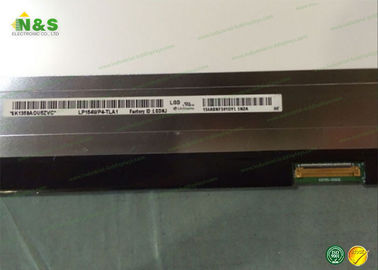

Panel Model : LP154WP4-TLA1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 15.4 inch
Resolution : 1440(RGB)×900 , WXGA+
Display Mode : TN, Normally White, Transmissive
Active Area : 331.344×207.09 mm
Outline : 342.85×229.87×4.03 mm
Shape Style : Flat (PCBA Flat, Depth 3.4~4.0mm)
Surface : Glare (Haze 0%), Hard coating, Antireflection
Brightness : 330 cd/m² (Typ.)
Contrast Ratio : 800:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 72%
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 10S6P WLED Without Driver
Signal Interface : LVDS (2 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)
N&S Electronic Co., Ltd is a professional enterprise specialized in LCD panels since 2010.
We can provide you with LCD module/panel/screen/glass, matching driver board, touch panel and diode, the big related supply lines.
LCD modules come from LCD original factory.
Quality Grade: A grade, New, Original
LCD Panel sizes contained but not limited to as follow: 1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc.
LCD Panel brands contained but not limited to as follow: NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.
We specialize in supplying the 7"-18.4"LCD & LED laptop screens, tablet pc screen, touch panel screen.
Such Sizes: 1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc
Such Resolutions: 800*480, 1024*600,1024*576, 1280*800,1366*768,1440*900, 1600*900, 1920*1080
Such Backlight types: LED, 1 CCFL, 2 CCFL
