Wholesale 1366*768 LP145WH1-TLA1 LG LCD Panel for 14.5 inch Flat Rectangle Display

Wholesale 1366*768 LP145WH1-TLA1 LG LCD Panel for 14.5 inch Flat Rectangle Display
Wholesale 1366*768 LP145WH1-TLA1 LG LCD Panel for 14.5 inch Flat Rectangle Display Wholesale 1366*768 LP145WH1-TLA1 LG LCD Panel for 14.5 inch Flat Rectangle Display

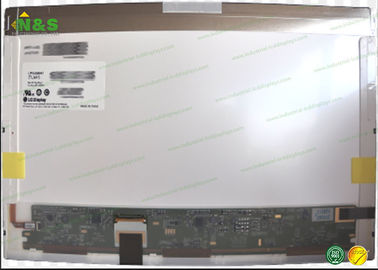

Large Image :  Wholesale 1366*768 LP145WH1-TLA1 LG LCD Panel for 14.5 inch Flat Rectangle Display

Product Details:
Place of Origin: Japan/Taiwan
Brand Name: LG LCD Panel
Certification: ISO9001

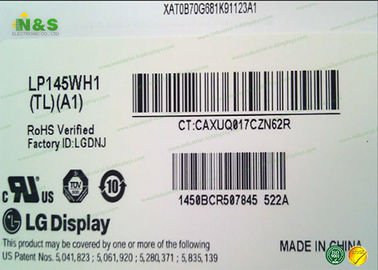

Model Number: LP145WH1-TLA1
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 1000 PCS PER DAY

Wholesale 1366*768 LP145WH1-TLA1 LG LCD Panel for 14.5 inch Flat Rectangle Display

Description
Resolution: 1366(RGB)×768 , WXGA Frequency: 60Hz
Contrast Ratio: 600:1 (Typ.) Brightness: 220 Cd/m² (Typ.)
Shape Style: Flat (PCBA Flat, Depth 3.4~4.0mm) Panel Size: 14.5 Inch
Panel Type: A-Si TFT-LCD , Panel Aspect Ratio: 16:9 (H:V)
High Light:

lg display panel

,

lg replacement screen

Wholesale 1366*768 LP145WH1-TLA1 LG LCD Panel for 14.0 inch Flat Rectangle Display

About N&S Electronics In the LCD Screen area:

N&S Electronic Co., Ltd is a professional enterprise specialized in LCD panels since 2010.
We can provide you with LCD module/panel/screen/glass, matching driver board, touch panel and diode, the big related supply lines.

LCD modules come from LCD original factory.
Quality Grade: A grade, New, Original
LCD Panel sizes contained but not limited to as follow: 1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc.



LCD Panel brands contained but not limited to as follow: NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.



General Features

Panel Brand : LG Display
Panel Model : LP145WH1-TLA1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 14.5 inch
Resolution : 1366(RGB)×768 , WXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 321.693×180.864 mm
Outline : 336.8×196.9×5.2 mm
Shape Style : Wedge (PCBA Bent, Depth ≥5.2mm)
Surface : Glare (Haze 0%), Hard coating (3H)
Brightness : 220 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 8 (Typ.)(Tr+Td)
Viewing Angle : 45/45/15/15 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 11S4P WLED   Embedded (LED Driver)
Signal Interface : LVDS (1 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)



Mechanical Features

Panel Size : 14.5 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 107 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0785×0.2355 mm (H×V)
Pixel Pitch : 0.2355×0.2355 mm (H×V)
Weight : 385g
Surface : Glare (Haze 0%), Hard coating (3H)
Active Area : 321.693×180.864 mm (H×V)
Bezel Area : 328.9×184.56 mm (H×V)
Outline Dimension : 336.8×196.9 mm (H×V)
Outline Depth : 5.2 (Max.) mm
Shape Style : Wedge (PCBA Bent, Depth ≥5.2mm)
Landscape or Portrait : Landscape type
Touch Panel : Without



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LH500X01-SH01 LG Display 5.0" 768×1024
LH500WX1-SH03 LG Display 5.0" 720×1280
LH450WV4-SH02 LG Display 4.5" 480×800
LH430WV4-SH01 LG Display 4.3" 480×800
LH430WV1-SH05 LG Display 4.3" 480×800
LH430M02-SH01 LG Display 4.3" 540×960



Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 220 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 8 (Typ.)(Tr+Td)
Viewing Angle : 45/45/15/15 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.40/1.60 (Typ./Max.)((5/17 points)



Features:

1) High range of temperature;

2) LCD Display Grade: 100% New , Grade A+;

3) LVDS Interface and VGA interface

4) High-speed response, Low power consumption

5) Panel Type: TFT

6) Surface Treatment: Haze 25%, Hard coating(3H)

7) Competitive price, offer 1 year of warranty;

8) Original technology support.

9) ISO9001 certification.



After-sale service:

1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
