14.0 inch and high brightness 14366*768 LP140WH8-TPA1 with 220 cd/m² custom lcd panels

14.0 inch and high brightness 14366*768 LP140WH8-TPA1 with 220 cd/m²  custom lcd panels
14.0 inch and high brightness 14366*768 LP140WH8-TPA1 with 220 cd/m²  custom lcd panels 14.0 inch and high brightness 14366*768 LP140WH8-TPA1 with 220 cd/m²  custom lcd panels

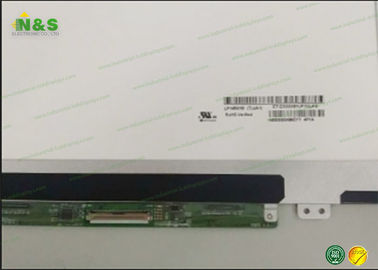

Large Image :  14.0 inch and high brightness 14366*768 LP140WH8-TPA1 with 220 cd/m² custom lcd panels

Product Details:
Place of Origin: Japan/Taiwan
Brand Name: LG LCD Panel
Certification: ISO9001
Model Number: LP140WH8-TPA1
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 1000 PCS PER DAY

14.0 inch and high brightness 14366*768 LP140WH8-TPA1 with 220 cd/m² custom lcd panels

Description
Resolution: 1366(RGB)×768 , WXGA Frequency: 60Hz
Contrast Ratio: 600:1 (Typ.) Brightness: 220 Cd/m² (Typ.)
Shape Style: Flat (PCBA Flat, Depth 3.4~4.0mm) Panel Size: 14.0 Inch
High Light:

lg display panel

,

lg replacement screen

14.0 inch and high brightness 14366*768 LP140WH8-TPA1 with 220 cd/m² custom lcd panels



TFT LCD Module series:

1. Our standard TFT LCD module size:

1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc.

2. Our TFT LCD module brands:

NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.

3. Transflective / sun readable TFT LCD.

4. We are pretty specialize in the EOL & Hard-to-find LCD screen panel.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LH530WX1-SH02 LG Display 5.3" 720×1280
LH500WX2-SH01 LG Display 5.0" 720×1280
LH176J03-SH02 LG Display 1.8" 220×176
LH176J04-TH01 LG Display 1.8" 176×220
LM230WF5-TJC3 LG Display 23.0" 1920×1080
LD470DUJ-SFE1 LG Display 47" 1920×1080

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk



General Features

Panel Brand : LG Display
Panel Model : LP140WH8-TPA1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 14.0 inch
Resolution : 1366(RGB)×768 , WXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 309.4×173.95 mm
Shape Style : Flat (PCBA Flat, Depth 3.4~4.0mm)
Surface : Glare (Haze 0%)
Brightness : 220 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 45%
Frequency : 60Hz
Lamp Type : WLED
Signal Interface : eDP (2 Lanes)



Mechanical Features

Panel Size : 14.0 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 112 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0755×0.2265 mm (H×V)
Pixel Pitch : 0.2265×0.2265 mm (H×V)
Surface : Glare (Haze 0%)
Active Area : 309.4×173.95 mm (H×V)
Shape Style : Flat (PCBA Flat, Depth 3.4~4.0mm)
Landscape or Portrait : Landscape type
Touch Panel : Without



Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 220 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 45% NTSC (CIE1931)





Features:



· High brightness LCD, resistive touch screen is optional.
· The brightness and contrast can be adjusted manually or automatically, having a power saving mode.
· High-strength aluminum alloy panel, surface oxidation treatment after drawing.
· The overall protection grade IP64, front panel IP65. Dust proof and shockproof.









Delivery Information:

Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.





Why choose us?

1) Products: All of our panels are 100% original and brand new, grade A+, no fake panels exists. Our products are original from AUO, LG, CMO, CPT, SAMSUNG, TOSHIBA, NEC, Hannstar, Mitsubishi and Sharp factory and so on, enjoy a good reputation among our customers in the past 6 years in our LCD panels international trade.

2) Stock: Mass stock for EOL & Hard-to-find LCD panel models with Competitive price. What is more, small order for LCD display are welcome here. .

3) Warranty: Provide 1 year of warranty, we will replace the defective LCD displays for you if it is of our party’s fault.

4) Various payment Terms: T/T, Western Union, PayPal etc.

5) Quick Delivery: As we have huge stock, orders only takes 1-3 working days after received the payment. And there are various Express supported, we also have competitive freight fee from DHL/UPS/EMS/FedEx/TNT Express companies.

6) Package: Strict package, all the products are in original package from original factory, and all the packages have labels and serial number from original factory.
