Product Details:
|
| Resolution: | 1366(RGB)×768 , WXGA | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Frequency: | 60Hz | Contrast Ratio: | 500:1 (Typ.) |
| Input Voltage: | 3.3V (Typ.) | Brightness: | 200 Cd/m² (Typ.) |
| Shape Style: | Flat (PCBA Flat, Depth 3.4~4.0mm) | Panel Size: | 14.0 Inch |
| High Light: | lg lcd display,lg replacement screen |
||

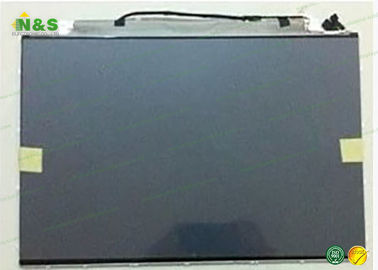

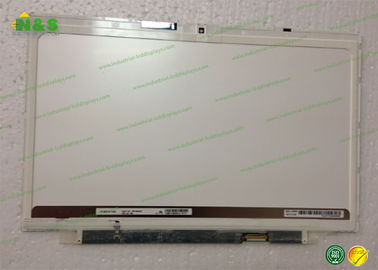

14.0 inch LG LCD Panel LP140WH7-TSA2 with 1366*768 TN, Normally White, Transmissive
Our guarantee:
(1) Our all LCD screen will be strictly tested pcs by pcs and shipped with professional & safe package.
(2) We have 12 months warranty for each LCD display, depend on the different items.
(3) We will do our best to solve any possible problem of our LCD panels for your after sale. Please contact with us if any needs.
Below are our other LCD panels stock for your easy reference:
|
Panel Model |
Brand |
Size |
Resolution |
|
LH530WX1-SH02 |
LG Display |
5.3" |
720×1280 |
|
LH500WX2-SH01 |
LG Display |
5.0" |
720×1280 |
|
LH176J03-SH02 |
LG Display |
1.8" |
220×176 |
|
LH176J04-TH01 |
LG Display |
1.8" |
176×220 |
|
LM230WF5-TJC3 |
LG Display |
23.0" |
1920×1080 |
|
LD470DUJ-SFE1 |
LG Display |
47" |
1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
General Features
Panel Brand : LG Display
Panel Model : LP140WH7-TSA2
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 14.0 inch
Resolution : 1366(RGB)×768 , WXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 309.399×173.952 mm
Outline : 326.8×211.55×4.1 mm
Shape Style : Flat (PCBA Flat, Depth 3.4~4.0mm)
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 45%
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 3 strings WLED

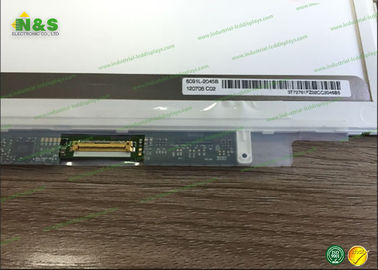

Signal Interface : eDP (1 Lane)
Input Voltage : 3.3V (Typ.)
Mechanical Features
|
Panel Size : |
14.0 inch |
|
Dot Resolution : |
1366(RGB)×768 (WXGA) |
|
Pixel Configuration : |
RGB Vertical Stripe |
|
Pixel Density : |
112 PPI |
|
Aspect Ratio : |
16:9 (H:V) |
|
Form Factor : |
Flat Rectangle Display |
|
Dot Pitch : |
0.0755×0.2265 mm (H×V) |
|
Pixel Pitch : |
0.2265×0.2265 mm (H×V) |
|
Weight : |
320g (Max.) |
|
Active Area : |
309.399×173.952 mm (H×V) |
|
Outline Dimension : |
326.8×211.55 mm (H×V) |
|
Shape Style : |
Flat (PCBA Flat, Depth 3.4~4.0mm) |
|
Holes & Brackets : |
Face mounting holes (2 pcs) on down slugs |
|
Landscape or Portrait : |
Landscape type |
|
Touch Panel : |
Without |
Optical Features
|
Display Mode : |
TN, Normally White, Transmissive |
|
Brightness : |
200 cd/m² (Typ.) |
|
Contrast Ratio : |
500 : 1 (Typ.) (Transmissive) |
|
Display Color : |
262K (6-bit) |
|
Color Gamut : |
45% NTSC (CIE1931) |
|
Response Time : |
16 (Typ.)(Tr+Td) |
|
Viewing Angle : |
45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
|
Viewing Direction : |
6 o'clock |
|
White color Chromaticity: |
Wx:0.313; Wy:0.329 |
|
White Variation : |
1.40/1.60 (Typ./Max.)(13 points) |
