Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ036Q1DA01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , Panel | Surface: | Hard Coating (3H) |
| Brightness: | 280 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) |
| Frequency: | 60Hz | Lamp Type: | 7S1P WLED |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
LQ036Q1DA01 Sharp LCD Display Panel 3.6 inch with 82.8*69.7 mm
| Panel Brand : | SHARP |
| Panel Model : | LQ036Q1DA01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 3.6 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 72.5×54.4 mm |
| Outline : | 82.8×69.7 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 280 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 15/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/50 (Typ.)(CR≥5) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 7S1P WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 51 pins |
| Input Voltage : | 5.0/3.3/15.0/-12.0V (Typ.)(VSHA/VSHD/VDD/VEE) |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2. Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
| Panel Size : | 3.6 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 112 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.076×0.227 mm (H×V) |
| Pixel Pitch : | 0.227×0.227 mm (H×V) |
| Weight : | 37g (Typ.) |
| Surface : | Hard coating (3H) |
| Active Area : | 72.5×54.4 mm (H×V) |
| Bezel Area : | 77.0×59.0 mm (H×V) |
| Outline Dimension : | 82.8×69.7 mm (H×V) |
| Outline Depth : | 3.3 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4:How long is the lead time?
A:The lead time is about 2-3 working days after receipt of payment.
Q5:Do you accept sample order?
A:Yes,sample order is welcome.
Q6:How can I get the quotation?
A:Please enquire viaSkype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |

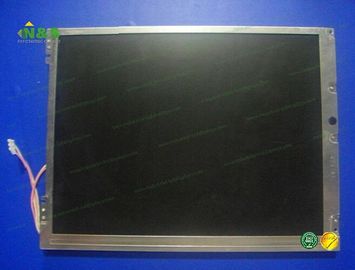

Details Pictures for LQ036Q1DA01 Sharp LCD Display Panel
