Product Details:
|
| Panel Size: | 14.0 Inch | Resolution: | 1366(RGB)×768 , WXGA |
|---|---|---|---|
| Display Colors: | 262K (6-bit) , CIE1931 45% | Transmissivity: | 6.1% (Typ.)(with Polarizer) |
| Frequency: | 60Hz | Contrast Ratio: | 500:1 (Typ.) |
| Glass Depth: | 0.50+0.50 Mm | Input Voltage: | 3.3V (Typ.) |
| High Light: | lg display panel,lg replacement screen |
||

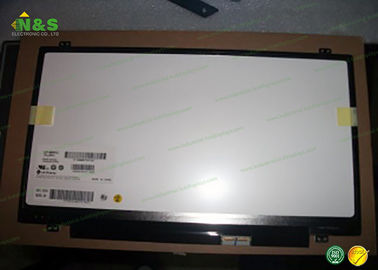

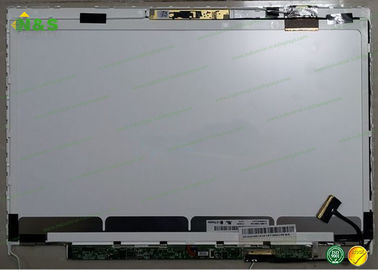

14.0 inch Flat Rectangle Display LP140WH6-TJA1 LG LCD Panel with 1366*768
Mechanical Features
Panel Size : 14.0 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 112 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0755×0.2265 mm (H×V)
Pixel Pitch : 0.2265×0.2265 mm (H×V)
Weight : 190g (Max.)
Surface : Glare (Haze 0%), Hard coating (3H)
Active Area : 309.399×173.952 mm (H×V)
Outline Dimension : 322.3×198.68 mm (H×V)
Outline Depth : 1.27 (Typ.) mm
Landscape or Portrait : Landscape type
Touch Panel : Without
Feature:
1) 100% Brand New and never used Touch Screen Digitizer.
2) Tested before shipping and 100% working well.
3) Delivery in 3 working days after payment confirmed.
4) Excellent after-sale service.
5) Great replacements for your LCD panels’ sourcing replenishment.
6) Each screen will be tested before shipping and 100% working guarantee.
Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 0 cd/m² |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 45/45/15/35 (Min.)(CR≥10) (L/R/U/D) |
| Transmissivity : | 6.1% (Typ.)(with Polarizer) |
LG Display LP140WH6-TJA1 General Features
Panel Brand : LG Display
Panel Model : LP140WH6-TJA1
Panel Type : a-Si TFT-LCD , CELL
Panel Size : 14.0 inch
Resolution : 1366(RGB)×768 , WXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 309.399×173.952 mm
Outline : 322.3×198.68 mm
Surface : Glare (Haze 0%), Hard coating (3H)
Glass Depth : 0.50+0.50 mm
Transmissivity : 6.1% (Typ.)(with Polarizer)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 45%
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 45/45/15/35 (Min.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Signal Interface : LVDS (1 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)
Questions & Answers:
Q1: How can you trust us?
- We are a professional team for the LCD panel international trade already for 6 years. We own the more professional & more competitive sourcing line & agency for the LCD Screen panels.
Q2: When can I get the update price?
- Within 24 hours after we get your inquiry.
Q3: What is your product capacity per day?
- 500-1000 pcs/day. We test each pcs LCD panels before shipment.
Q4: What is the payment term?
- T/T, Western Union, MoneyGram, PayPal.
Q6: Do you offer after-sale service?
- Yes, we do. We have strict QC system to make sure within our guarantee period(12 months), please contact us ASAP if there is any question, we will try our best to resolve it.
Q7: Which brands' LCD panel replacements could we handle?
- Our LCD screen panels contained but not limited to AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more brand for the industrial TFT LCD module.
Q8: Do you provide samples?
- Yes, we are glad to offer you our samples for checking quality. If you are interested in some of our products, please feel free to contact us for
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
| LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
| LH450WV4-SH02 | LG Display | 4.5" | 480×800 |
| LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
| LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
| LH430M02-SH01 | LG Display | 4.3" | 540×960 |
