Product Details:
|
| Panel Size: | 14.0 Inch | Panel Type: | A-Si TFT-LCD , Panel |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 , WXGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 309.399×173.952 Mm | Outline: | 322.3×200.9×3.6 Mm |
| Brightness: | 200 Cd/m² (Typ.) | Viewing Angle: | 40/40/10/30 (Min.)(CR≥10) (L/R/U/D) |
| High Light: | lg lcd display,lg replacement screen |
||

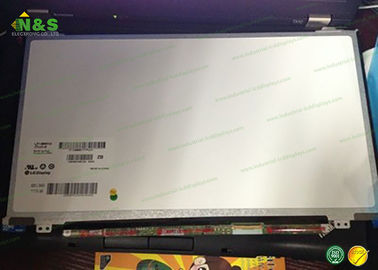

1366*768 high brightness large screen monito LP140WH2-TLL4 with 14.0 inch without touch
Application
Specifications
| Panel Size : | 14.0 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 112 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0755×0.2265 mm (H×V) |
| Pixel Pitch : | 0.2265×0.2265 mm (H×V) |
| Weight : | 320g (Max.) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Active Area : | 309.399×173.952 mm (H×V) |
| Bezel Area : | 313.40×177.45 mm (H×V) |
| Outline Dimension : | 322.3×200.9 mm (H×V) |
| Outline Depth : | 3.6 (Max.) mm |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets : | Face mounting holes (4 pcs) on down slugs, two up ears |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 45% NTSC (CIE1931)
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 40/40/10/30 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.40/1.60 (Typ./Max.)(13 points)
LG Display LP140WH2-TLL4 General Features
Panel Brand : LG Display
Panel Model : LP140WH2-TLL4
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 14.0 inch
Resolution : 1366(RGB)×768 , WXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 309.399×173.952 mm
Outline : 322.3×200.9×3.6 mm
Shape Style : Flat (PCBA Flat, Depth 3.4~4.0mm)
Surface : Glare (Haze 0%), Hard coating (3H)
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 45%
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 40/40/10/30 (Min.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 strings WLED Embedded (LED Driver)
Signal Interface : LVDS (1 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)
