Product Details:
|
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 3.5 Inch |
|---|---|---|---|
| Resolution: | 240(RGB)×320 , QVGA | Surface: | Hard Coating (3H) |
| Brightness: | 50 Cd/m² (Typ.) | Contrast Ratio: | 70:1 (Typ.)(Transmissive) 8:1 (Typ.)(Reflective) |
| Viewing Angle: | 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) | Frequency: | 60Hz |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
3.5 inch Normally White LQ035Q7DB02 LCD Display Panel with 65*85*4.8 mm
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options.
• All steel construction provides rugged frame for public use environments
• Two independent touch points
• Improved power efficiency and reduced consumption
• ISO9001 approvals.
| Panel Brand : | SHARP |
| Panel Model : | LQ035Q7DB02 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 3.5 inch |
| Resolution : | 240(RGB)×320 , QVGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 53.64×71.52 mm |
| Outline : | 65×85×4.8 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 50 cd/m² (Typ.) |
| Contrast Ratio : | 70:1 (Typ.)(Transmissive) 8:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S1P WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 50 pins |
| Input Voltage : | 5.0/3.3/15.0/-15.0V (Typ.)(VSHA/VSHD/VDD/VEE) |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 13 years experience in intelligent controller R&D and manufacturing.
6. Strong R&D term supports perfect customized projects.
7. Supplier of famous brands: Sun Rain, Phnix, Chigo, Rechi, Microwell SRO etc.
8. Fabulous after-sale service.
| Display Mode : | TN, Normally White, Transflective |
| Brightness : | 50 cd/m² (Typ.) |
| Contrast Ratio : | 70 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 8:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.320; Wy:0.340 |
| Reflectance Ratio : | 7/11% (Min./Typ.) |
| Sunlight Readable : | Sunlight Readable |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

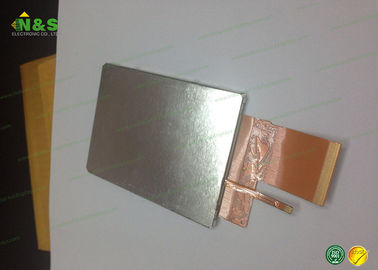

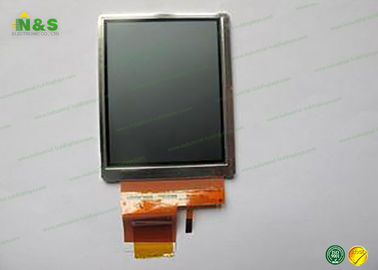

Details Pictures for LQ035Q7DB02 LCD Display Panel
