1024×768 G150XGE-L07 15 inch Innolux LCD Panel , Antiglare TFT LCD Display

1024×768 G150XGE-L07 15 inch Innolux LCD Panel , Antiglare TFT LCD Display
1024×768 G150XGE-L07 15 inch Innolux LCD Panel , Antiglare TFT LCD Display 1024×768 G150XGE-L07 15 inch Innolux LCD Panel , Antiglare TFT LCD Display 1024×768 G150XGE-L07 15 inch Innolux LCD Panel , Antiglare TFT LCD Display 1024×768 G150XGE-L07 15 inch Innolux LCD Panel , Antiglare TFT LCD Display

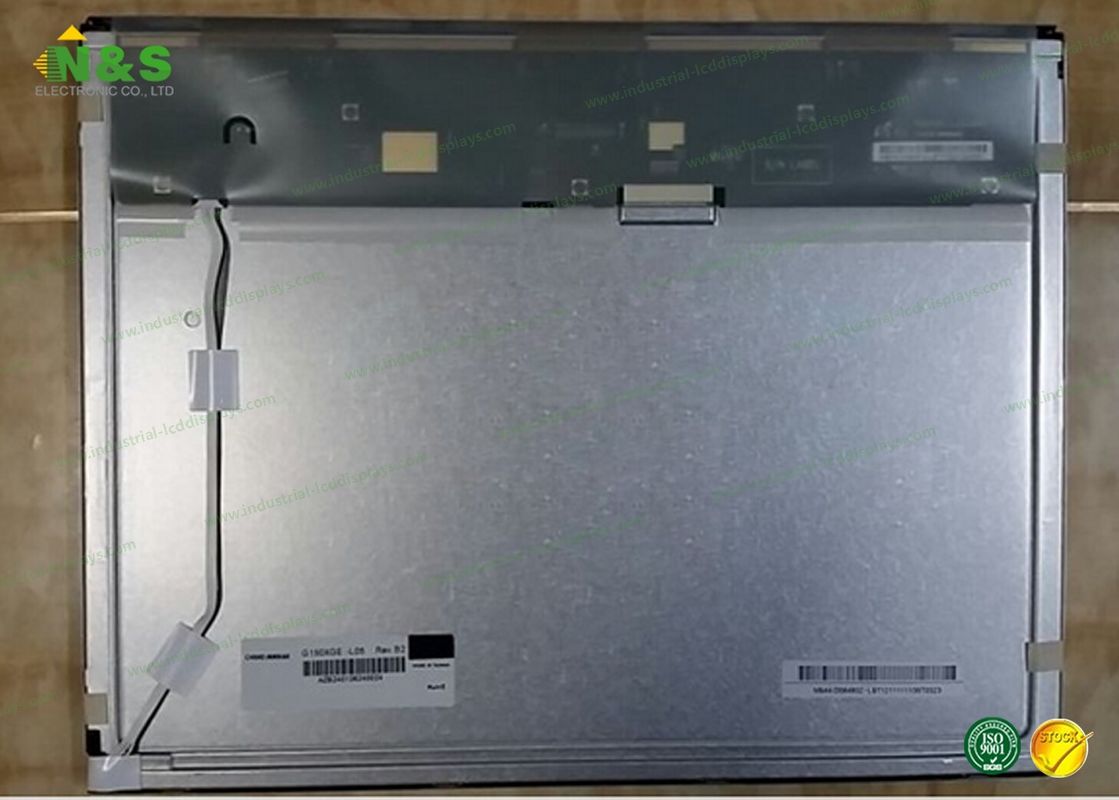

Large Image :  1024×768 G150XGE-L07 15 inch Innolux LCD Panel , Antiglare TFT LCD Display

Product Details:
Place of Origin: Japan,Taiwan
Brand Name: Innolux LCD Panel
Certification: ISO9001
Model Number: G150XGE-L07
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100 PCS PER DAY

1024×768 G150XGE-L07 15 inch Innolux LCD Panel , Antiglare TFT LCD Display

Description
Aspect Ratio: 4:3 (H:V) Form Factor: Flat Rectangle Display
Weight: 1.08/1.13Kgs (Typ./Max.) Outline Dimension: 326.5×253.5 Mm (H×V)
Holes & Brackets: Side Mounting Holes (4-M3) On Left, Right Bezel Brightness: 350 Cd/m² (Typ.)
High Light:

tft lcd display

,

innolux lcd screen

1024×768 G150XGE-L07 15 inch Innolux LCD Panel for Antiglare TFT LCD Display



Packaging & Delivery



Packaging Details:

  1. Safey package
  2. Plastic trays inside
  3. 2 layes of cartons
  4. Fragile sign on top
  5. Can be customize 3.5 inch spare parts auo used lcd panel

Delivery Detail: 1-3 Working Days



Product Description



Panel Size : 15.0 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 85 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.099×0.297 mm (H×V)
Pixel Pitch : 0.297×0.297 mm (H×V)
Weight : 1.08/1.13Kgs (Typ./Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 304.1×228.1 mm (H×V)
Bezel Area : 307.4×231.3 mm (H×V)
Outline Dimension : 326.5×253.5 mm (H×V)
Outline Depth : 11.5±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type



INNOLUX G150XGE-L07 Backlight System



Lamp Position Edge light type
Lamp Type WLED
Lamp Life Time 50K(Min.) (Hours)
Lamp Replaceable Replaceable
Interface Type Connector
Backlight Interface Brand Model Pin Pitch Pins Amount
E&T 3808K-F05N-03L 1.25 mm 5 pins 1 pcs
Lamp Driver Board Embedded (LED Driver)
Lamp Driver Board 12.0±1.2V
Lamp Driver Board 0.45±0.1A
Lamp Driver Board 4.9W (Max.)





Company Strength:



1>ISO9001 certificated.

2> Competitive Price and Short Lead-time

3> Professional Team with Rich Experiences in LCD Screen International trade.

4> Small MOQ Support & Fast Response to Customers

5> Long Product Life Time

6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.

7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.

8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.



Products Details for INNOLUX G150XGE-L07

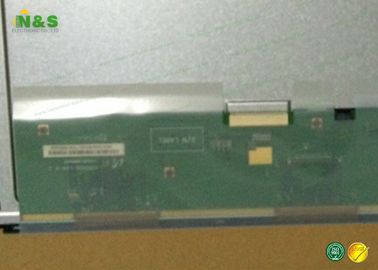

1024×768 G150XGE-L07 15 inch Innolux LCD Panel , Antiglare TFT LCD Display 0

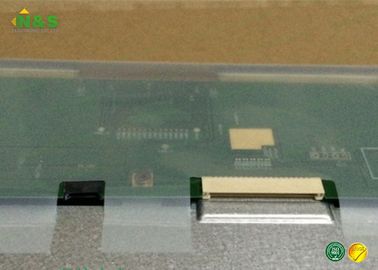

1024×768 G150XGE-L07 15 inch Innolux LCD Panel , Antiglare TFT LCD Display 1

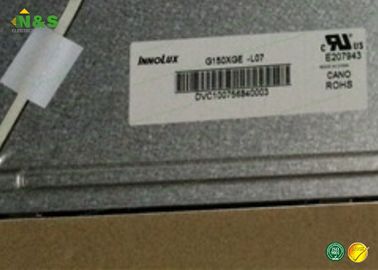

1024×768 G150XGE-L07 15 inch Innolux LCD Panel , Antiglare TFT LCD Display 2
