Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ065T9DZ03 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 6.5 Inch |
| Brightness: | 250 Cd/m² (Typ.) | Contrast Ratio: | 260:1 (Typ.)(Transmissive) 8:1 (Typ.)(Reflective) |
| Display Colors: | 262K (6-bit) | Response Time: | 10/25 (Typ.)(Tr/Td) |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
Sharp LCD Panel 6.5 inch LQ065T9DZ03 with Antiglare, Antireflection
SHARP 6.5 inch LQ065T9DZ03 panel General Features
| Panel Brand : | SHARP |
| Panel Model : | LQ065T9DZ03 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 6.5 inch |
| Resolution : | 400(RGB)×240 , WQVGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 143.4×79.326 mm |
| Outline : | 155×89.2 mm |
| Surface : | Antiglare, Antireflection |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 260:1 (Typ.)(Transmissive) 8:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/45/45 (Typ.)(CR≥15) (L/R/U/D) |
| Frequency : | 60Hz |
We Can Do for You
1. Quality ensurance
100% original new and A grade,
You can enjoy the real panels directly from original factory;
2. Fast reply
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3. Delivery ensurance
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4. After-Sale Service
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.
We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation
We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
SHARP LQ065T9DZ03 Mechanical Features
| Display Mode : | TN, Normally White, Transflective |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 260 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 8:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Response Time : | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/45/45 (Typ.)(CR≥15) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| Reflectance Ratio : | 4.4/5.5% (Min./Typ.) |
| Sunlight Readable : | Sunlight Readable |
Packing & Delivery for our LCD Screen Panel Replacemen
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.

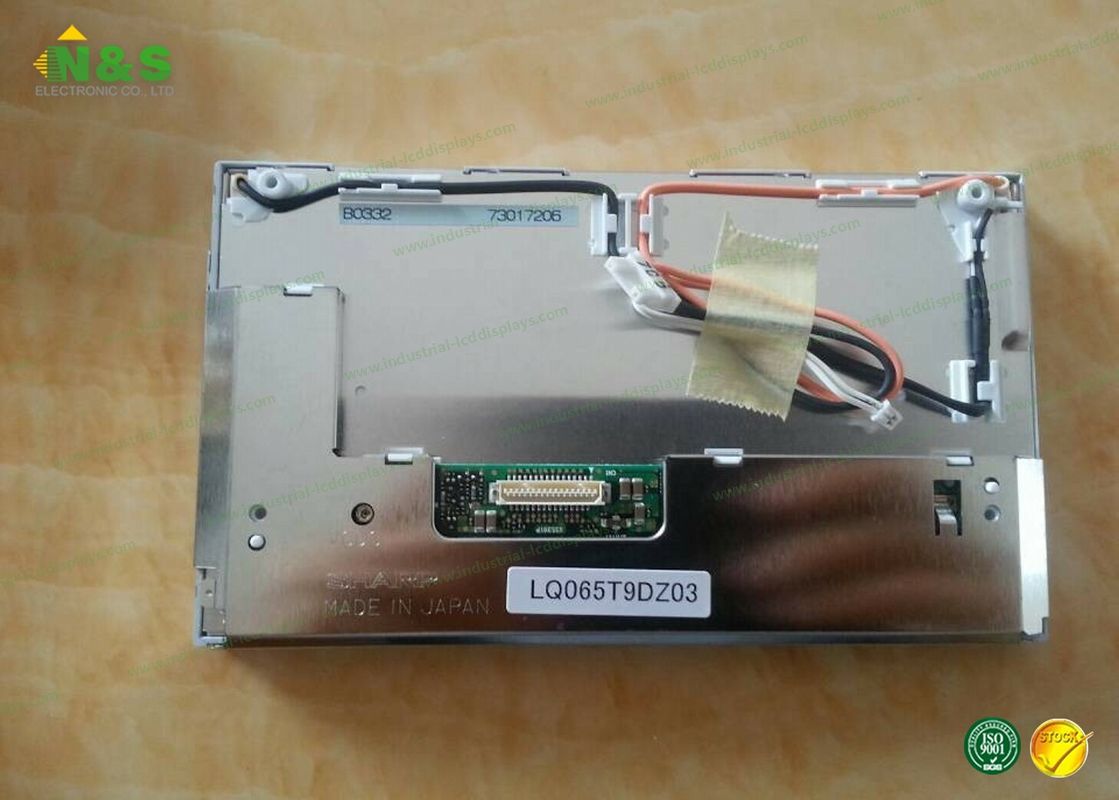

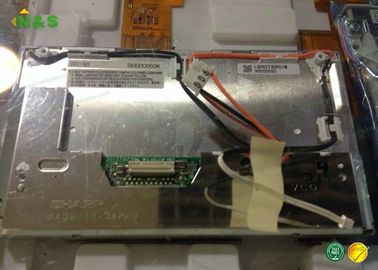

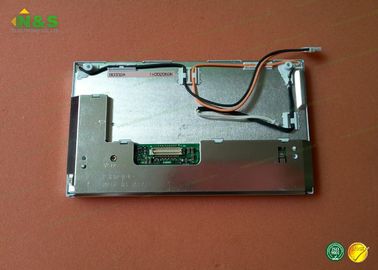

Details Pictures for Sharp LCD
