Product Details:
|
| Contrast Ratio: | 800:1 (Typ.) | Display Colors: | 16.7M (8-bit) , CIE1931 50% |
|---|---|---|---|
| Response Time: | 10/15 (Typ.)(Tr/Td) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 10.1 Inch |
| Resolution: | 1280(RGB)×800 , WXGA | Panel Brand: | CHIMEI INNOLUX |
| High Light: | tft lcd display,lcd monitor panel |
||
Normally Black EJ101IA-01C Chimei LCD Panel with 1280*800
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | EJ101IA-01C |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 10.1 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Display Mode : | IPS, Normally Black, Transmissive |
| Active Area : | 216.96×135.6 mm |
| Outline : | 228.96×148.5×4.6 mm |
| Surface : | Hard coating, Antireflection |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S6P WLED |
| Signal Interface : | LVDS (1 ch, 8-bit) , 45 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Advantage
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 149 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch : | 0.1695×0.1695 mm (H×V) |
| Weight : | 140g (Max.) |
| Surface : | Hard coating, Antireflection |
| Active Area : | 216.96×135.6 mm (H×V) |
| Outline Dimension : | 228.96×148.5 mm (H×V) |
| Outline Depth : | 2.5/4.6 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on right, up, down slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in LCD screen international trade communication.
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time
7. 1 Year warranty for our LCD screen replacements.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ72 | CPT | 4.5" | 480×854 |
| CLAN050WD61 6XM | CPT | 5.0" | 720×1280 |
| CLAD015GC41 AX | CPT | 1.5" | 240×240 |
| CLAA090WK05XN | CPT | 9.0" | 1280×720 |
| CLAC080XA12LW | CPT | 8.0" | 1024×768 |
| CLAD015GB01 AX | CPT | 1.5" | 240×240 |
| CLAG045LG71 XX | CPT | 4.5" | 480×854 |

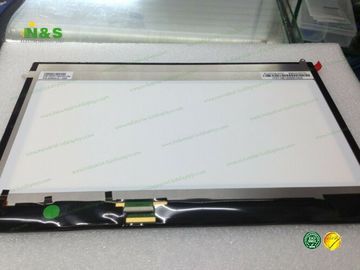

Details Pictures for EJ101IA-01C
