Product Details:
|
| Display Mode: | TN, Normally White, Transmissive | Resolution: | 1280(RGB)×800 , WXGA |
|---|---|---|---|
| Brightness: | 500 Cd/m² (Typ.) | Outline: | 299×195×8.2 Mm |
| Contrast Ratio: | 800:1 (Typ.) | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins |
| High Light: | tft lcd display,lcd display panel |
||
Wholesale 13.3 inch TFT LCD display G133IGE-L03 CMO , 1280*800 Innolux LCD Panel
CHIMEI INNOLUX G133IGE-L03 Specifications
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | G133IGE-L03 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 13.3 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Active Area : | 286.08×178.8 mm |
| Outline : | 299×195×8.2 mm |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 43% |
| Response Time : | 6/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| Operating Temperature : | -30 ~ 70 °C |
| Storage Temperature : | -30 ~ 80 °C |
CHIMEI INNOLUX G133IGE-L03 Mechanical Features
|
Pixel Density : |
113 PPI |
|
Aspect Ratio : |
16:10 (H:V) |
|
Form Factor : |
Flat Rectangle Display |
|
Dot Pitch : |
0.0745×0.2235 mm (H×V) |
|
Pixel Pitch : |
0.2235×0.2235 mm (H×V) |
|
Weight : |
382/397g (Typ./Max.) |
|
Surface : |
Antiglare, Hard coating (3H) |
|
Active Area : |
286.08×178.8 mm (H×V) |
|
Bezel Area : |
289.1×181.8 mm (H×V) |
|
Outline Dimension : |
299×195 mm (H×V) |
|
Outline Depth : |
6.6/8.2 (Typ./Max.) mm |
|
Holes & Brackets : |
Face mounting holes (3-M2); Side mounting holes (6-M2) |
Our Advantages
Primary Competitive Advantages:

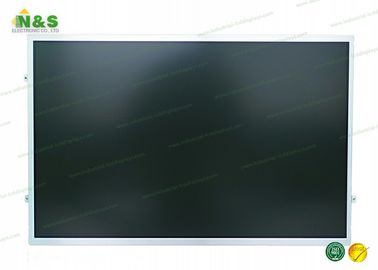

Product Picture for CHIMEI INNOLUX G133IGE-L03

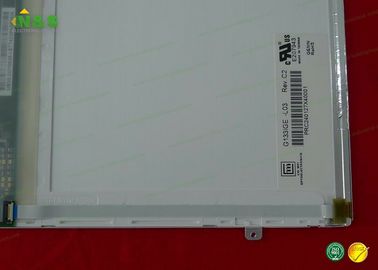

Profile Picture

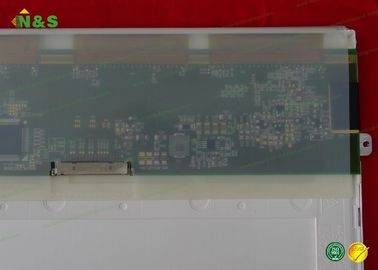

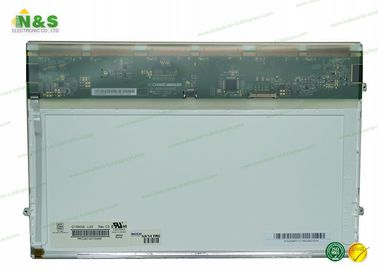

Backside Picture

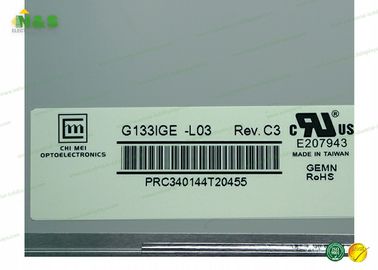

Tabs Picture
Packaging Picture
