Product Details:
|
| Resolution: | 240(RGB)×320 , QVGA | Outline: | 65×85×3.7 Mm |
|---|---|---|---|
| Panel Model: | LQ035Q7DB03F | Response Time: | 30/50 (Typ.)(Tr/Td) |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

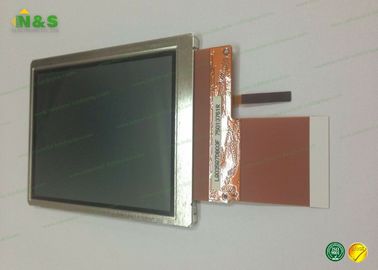

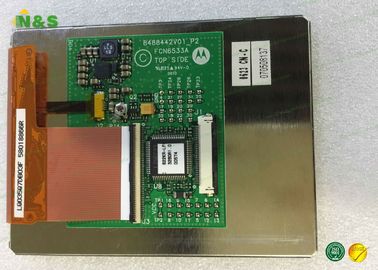

3.5 inch Color 262K WLED SHARP LQ035Q7DB03F with Hard coating
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM089HB1T04 | SHARP | 8.9" | 640×240 |
| LM077VS1T01 | SHARP | 7.7" | 640×480 |
| LM64C081 | SHARP | 9.4" | 640×480 |
| LM64C352 | SHARP | 10.4" | 640×480 |
| LM80C032 | SHARP | 10.4" | 800×600 |
| LM80C20PA | SHARP | 11.3" | 800×600 |
| LM80C219 | SHARP | 11.3" | 800×600 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
General Features :
| Display Mode : | TN, Normally White, Transflective |
| Brightness : | 55 cd/m² (Typ.) |
| Contrast Ratio : | 85 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 15:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| Reflectance Ratio : | 8/13% (Min./Typ.) |
| Sunlight Readable : | Sunlight Readable |
Company strength:
Our guarantee:
(1) Our all LCD screen will be strictly tested pcs by pcs and shipped with professional & safe package.
(2) We have 12 months warranty for each LCD display, depend on the different items.
(3) We will do our best to solve any possible problem of our LCD panels for your after sale. Please contact with us if any needs.
