Product Details:
|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 187.2×105.3 Mm |
|---|---|---|---|
| Outline: | 199×119 Mm | Surface: | Antiglare |
| Response Time: | 12/18 (Typ.)(Tr/Td) | Viewing Angle: | 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type: | 3S9P WLED | Signal Interface: | TFT Specific Analog RGB , 26 Pins |
| High Light: | auo lcd screen,auo lcd display |
||
8.5 inch 187.2*105.3 mm A085FW01 V7 AUO LCD Screen with 480*234
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
We can do for You:
1. Quality Guarantee:
100% original new and A grade,
You can get the real panels directly from original factory;
2. Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3. Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4. After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of LCD panels industry to provide customers with effective advice.
We have been in original LCD panels industry for more than 6 years and know the main brands' LCD panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation:
We are insistent in LCD panel industry. Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
| Panel Brand : | AUO |
| Panel Model : | A085FW01 V7 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 8.5 inch |
| Resolution : | 480(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 187.2×105.3 mm |
| Outline : | 199×119 mm |
| Surface : | Antiglare |
| Brightness : | 220 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | Full color |
| Response Time : | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 3S9P WLED [8S |
| Signal Interface : | TFT Specific Analog RGB , 26 pins |
| Input Voltage : | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Panel Size : | 8.5 inch |
| Dot Resolution : | 480(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 63 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.130×0.450 mm (H×V) |
| Pixel Pitch : | 0.390×0.450 mm (H×V) |
| Weight : | 232±10g |
| Surface : | Antiglare |
| Active Area : | 187.2×105.3 mm (H×V) |
| Outline Dimension : | 199×119 mm (H×V) |
| Outline Depth : | 5.8 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

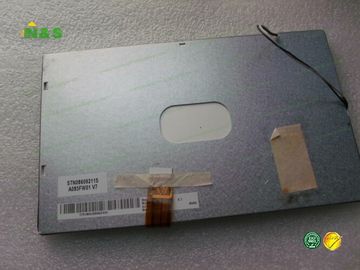

Details Pictures for A085FW01 V7 AUO LCD Screen
