Product Details:
|
| Pixel Density: | 86 PPI | Form Factor: | Flat Rectangle Display |
|---|---|---|---|
| Weight: | 4.50Kgs (Max.) | Surfac: | Antiglare (Haze 40%), Hard Coating |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
470.4×352.8 mm SHARP Pixel Pitch 0.294×0.294 mm (H×V) LQ231U1LW32 23.1 inch a-Si TFT-LCD , Panel
Competitive Advantage:
1. We are a leading manufacturer of LCD products for more than 10 years.
2, We got the ISO9001 quality management system certification.
3, We have our own R&D team, and accept OEM order as per customer’s design.
4, We are the 5-years four star member of Globalsources and the Three year Gold supplier in Alibaba.
5, Our main material LCD panels all are directly imported from Samsung and LG in Korea.
6, All products win the certificate of CE,CCC,FCC and RoHS.
7, Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 5 days.
8, 3-years warranty is offered.
| Panel Brand : | SHARP |
| Panel Model : | LQ231U1LW32 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 23.1 inch |
| Resolution : | 1600(RGB)×1200 , UXGA |
| Display Mode : | ASV, Normally Black, Transmissive |
| Active Area : | 470.4×352.8 mm |
| Outline : | 530×431.5×24.9 mm |
| Surface : | Antiglare (Haze 40%), Hard coating (2H) |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 12 (Typ.)(Tr+Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | OpenLDI , 31 pins |
| Input Voltage : | 5.0V (Typ.) |
More Information For N&S electronic Co.,LTD:
1. Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds in China from 2010, you can get the most competitive price for real products.
2. Quality to be ensure:
All the panels are 100% original and brand new, no fake panels exists, so from N&S you can enjoy the real panels directly from original factory; Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them.
3.Quickly delivery:
We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from HKSEBO you can get more convenient delivery;
4.long-term partner:
* Products are sold to more than 20 countries, so from N&S you can get more stable supplying promise;
5. Super After-Sale service:
N&S will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here return you a new panel;
6.the best TFT LCD solution:
*more tft lcd model detail information including,size, resolution, brightness, op
SHARP LQ231U1LW32 Optical Features:
| Display Mode : | ASV, Normally Black, Transmissive |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 12 (Typ.)(Tr+Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.292; Wy:0.315 |
| White Variation : | 1.33 (Max.)(9 Points) |

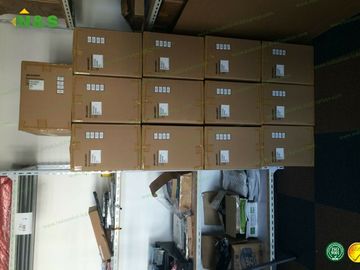

Pictures for SHARP LQ231U1LW32 23.1 inch a-Si TFT-LCD , Panel :
