Product Details:
|
Brightness: | 350 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) |
---|---|---|---|
Display Colors: | 16.7M (8-bit) , CIE1931 50% | Response Time: | 15/20 (Typ.)(Tr/Td) |
Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) | Frequency: | 60Hz |
High Light: | chimei lcd display,lcd monitor panel |
Hard coating HJ070IA-02F 7 inch tft lcd display 149.76×93.6 mm Active Area 161.2×107.2×4.5 mm Outline
We can do for you:
1. Provide excellent LCD screen replacements with competitive price.
2. Safe, quick and efficient supply chain.
3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
4. Your problems will be replied within 24 hours
CHIMEI INNOLUX HJ070IA-02F General Features
Panel Brand : | CHIMEI INNOLUX |
Panel Model : | HJ070IA-02F |
Panel Type : | a-Si TFT-LCD , Panel |
Panel Size : | 7.0 inch |
Resolution : | 1280(RGB)×800 , WXGA |
Display Mode : | IPS, Normally Black, Transmissive |
Active Area : | 149.76×93.6 mm |
Outline : | 161.2×107.2×4.5 mm |
Surface : | Hard coating |
Brightness : | 350 cd/m² (Typ.) |
Contrast Ratio : | 800:1 (Typ.) |
Display Colors : | 16.7M (8-bit) , CIE1931 50% |
Response Time : | 15/20 (Typ.)(Tr/Td) |
Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | WLED |
Signal Interface : | LVDS (1 ch, 8-bit) , 40 pins |
Input Voltage : | 3.3/9.74/22.7/-8V (Typ.)(VDD/AVDD/VGH/VGL) |
CHIMEI INNOLUX HJ070IA-02F Mechanical Features
Panel Size : | 7.0 inch |
Dot Resolution : | 1280(RGB)×800 (WXGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 217 PPI |
Aspect Ratio : | 16:10 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.039×0.117 mm (H×V) |
Pixel Pitch : | 0.117×0.117 mm (H×V) |
Weight : | 101.6g |
Surface : | Hard coating |
Active Area : | 149.76×93.6 mm (H×V) |
Bezel Area : | 151.76×95.6 mm (H×V) |
Outline Dimension : | 161.2×107.2 mm (H×V) |
Outline Depth : | 2.5/4.5 (Typ./Max.) mm |
Holes & Brackets : | Without |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
ED060KG1 | E Ink | 6.0" | 1072×1448 |
ED060KC1 | E Ink | 6.0" | 1072×1448 |
ED060XC9 | E Ink | 6.0" | 758×1024 |
ED060XD7 | E Ink | 6.0" | 758×1024 |
ED080TC1 | E Ink | 8.0" | 1600×1200 |
ED097TC1 | E Ink | 9.7" | 1200×825 |
ET047TC1 | E Ink | 4.7" | 540×960 |
ET040TC1 | E Ink | 4.0" | 480×720 |
ED043WH1 | E Ink | 4.3" | 480×800 |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options.
• All steel construction provides rugged frame for public use environments
• Two independent touch points
• Improved power efficiency and reduced consumption
• ISO9001 approvals.

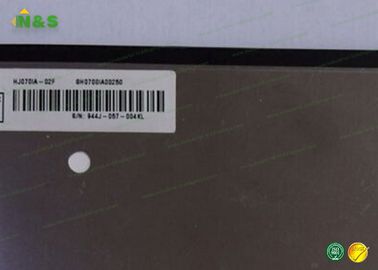

Details Pictures for Chimei LCD Panel HJ070IA-02F
