Product Details:
|
| Contrast Ratio: | 800:1 (Typ.) | Display Colors: | 16.2M (6-bit + FRC) |
|---|---|---|---|
| Response Time: | 35 (Typ.)(Tr+Td) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Panel Model: | LQ070Y3LW01 | Panel Type: | A-Si TFT-LCD , Panel |
| Panel Size: | 7.0 Inch | Resolution: | 800×480(RGB) , WVGA |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
Sharp LCD Panel LQ070Y3LW01 7.0 inch 152.4×91.44 mm Active Area 163.2×104×9.5 mm Outline
We Can Do for You:
1) One-to-one service with efficient& professional support;
2) Protection of your design and all your private information;
3) We could supply hard-to-findLCD screen replacements;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
SHARP LQ070Y3LW01 General Features
| Panel Brand : | SHARP |
| Panel Model : | LQ070Y3LW01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 800×480(RGB) , WVGA |
| Display Mode : | ASV, Normally Black, Transmissive |
| Active Area : | 152.4×91.44 mm |
| Outline : | 163.2×104×9.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 360 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.2M (6-bit + FRC) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 7S2P WLED |
| Signal Interface : | LVDS (1 ch, 8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
SHARP LQ070Y3LW01 Optical Features
| Display Mode : | ASV, Normally Black, Transmissive |
| Brightness : | 360 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.2M (6-bit + FRC) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.310; Wy:0.340 |
| White Variation : | 1.25 (Max.)(5 points) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |

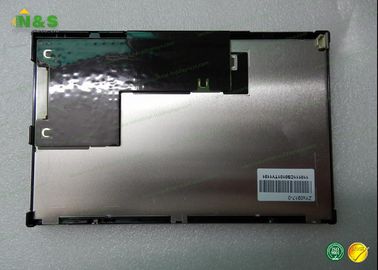

Details Pictures for Sharp LCD Panel LQ070Y3LW01
