Product Details:
|
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 8.0 Inch |
|---|---|---|---|
| Active Area: | 176.64×99.36 Mm | Outline: | 192.8×116.9×6.7 Mm |
| Contrast Ratio: | 700:1 (Typ.) | Display Colors: | 16.7M (8-bit) , CIE1931 70% |
| Response Time: | 10/20 (Typ.)(Tr/Td) | Frequency: | 60Hz |
| High Light: | tft lcd display,lcd monitor panel |
||
Chimei LCD Panel ZJ080NA-08A 8.0 inch 176.64×99.36 mm Active Area 192.8×116.9×6.7 mm Outline
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
CHIMEI INNOLUX ZJ080NA-08A General Features
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | ZJ080NA-08A |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 8.0 inch |
| Resolution : | 1024(RGB)×600 , WSVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 176.64×99.36 mm |
| Outline : | 192.8×116.9×6.7 mm |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 70% |
| Response Time : | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | LVDS (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VHL) |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options.
• All steel construction provides rugged frame for public use environments
• Two independent touch points
• Improved power efficiency and reduced consumption
• ISO9001 approvals.
CHIMEI INNOLUX ZJ080NA-08A Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 70% NTSC (CIE1931) |
| Response Time : | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

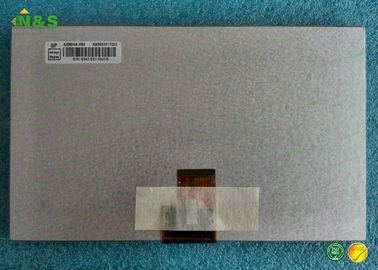

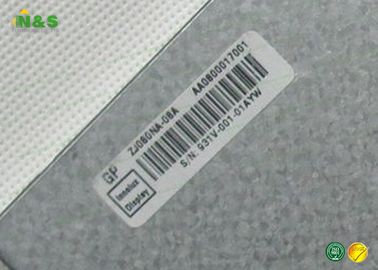

Details Pictures for Chimei LCD Panel ZJ080NA-08A
