Product Details:
|
| Active Area: | 108×64.8 Mm | Outline: | 120.7×75.8×6.3 Mm |
|---|---|---|---|
| Surface: | Antiglare | Brightness: | 300 Cd/m² (Typ.) |
| Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) | Frequency: | 60Hz |
| Lamp Type: | 6S3P WLED | Signal Interface: | Parallel RGB (1 Ch, 8-bit) , 45 Pins |
| High Light: | black and white lcd display,lcd panel screen |
||
TM050RBH01 5.0 inch small color lcd display 108×64.8 mm Active Area
Production Machinery
| Panel Brand : | TIANMA |
| Panel Model : | TM050RBH01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 5.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 108×64.8 mm |
| Outline : | 120.7×75.8×6.3 mm |
| Surface : | Antiglare |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 450:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S3P WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 45 pins |
| Input Voltage : | 3.3V (Typ.) |
TIANMA TM050RBH01 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 450 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.320; Wy:0.340 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience inindustrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM050JYSP01 | Tianma | 5.0" | 720×1280 |
| TL055VGXP01 | Tianma | 5.5" | 1080×1920 |
| TM045YYHP08 | Tianma | 4.5" | 480×854 |
| TL050JGXP01 | Tianma | 5.0" | 720×1280 |
| TM050JYHP05 | Tianma | 5.0" | 720×1280 |
| TM060XYSP01 | Tianma | 6.0" | 540×960 |
| TM046XYHP02 | Tianma | 4.7" | 540×960 |
| TL047JYXP01-00 | Tianma | 4.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

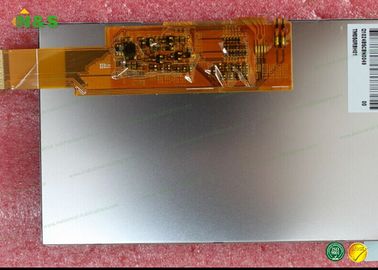

Details Pictures for Tianma LCD Displays TM050RBH01
