Product Details:
|
| Brightness: | 450 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) |
|---|---|---|---|
| Display Colors: | 16.7M (8-bit) , CIE1931 50% | Response Time: | 20 (Typ.)(Tr+Td) |
| Panel Size: | 4.3 Inch | Frequency: | 60Hz |
| Lamp Type: | 10S1P WLED | Signal Interface: | Parallel RGB (1 Ch, 8-bit) , 40 Pins |
| High Light: | black and white lcd display,lcd panel screen |
||

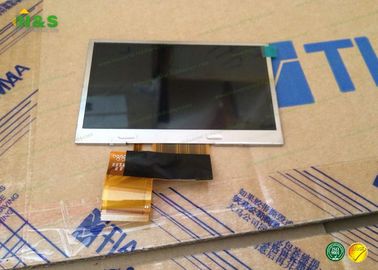

TM043NDH03 4.3 inch Small normal white LCD Panel 95.04×53.86 mm Active Area
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity,other specifications for the LCD Screen to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
TIANMA TM043NDH03 General Features
| Panel Brand : | TIANMA |
| Panel Model : | TM043NDH03 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 4.3 inch |
| Resolution : | 480(RGB)×272 , WQVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 95.04×53.86 mm |
| Outline : | 105.5×67.2 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 10S1P WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
TIANMA TM043NDH03 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 9 o'clock |
| White color Chromaticity : | Wx:0.305; Wy:0.316 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
