Product Details:
|
| Panel Brand: | PVI | Panel Model: | PW065XSA |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 6.5 Inch |
| Response Time: | 15/25 (Typ.)(Tr/Td) | Viewing Angle: | 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency: | 60Hz | Lamp Type: | 3S8P WLED |
| High Light: | industrial lcd screen,industrial lcd panel |
||

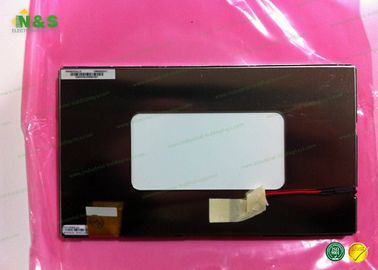

PVI LCD Display PW065XSA 6.5 inch 143.4×79.326 mm Active Area 155.6×89.6×7.9 mm Outline
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options.
• All steel construction provides rugged frame for public use environments
• Two independent touch points
• Improved power efficiency and reduced consumption
• ISO9001 approvals.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED312TT2 | E Ink | 31.2" | 2560×1440 |
| ES133TE1 | E Ink | 13.3" | 2200×1650 |
| ES133TT2 | E Ink | 13.3" | 2200×1650 |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
PVI PW065XSA General Features
| Panel Brand : | PVI |
| Panel Model : | PW065XSA |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 6.5 inch |
| Resolution : | 400(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 143.4×79.326 mm |
| Outline : | 155.6×89.6×7.9 mm |
| Surface : | Antiglare |
| Brightness : | 420 cd/m² (Typ.) |
| Contrast Ratio : | 350:1 (Typ.) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S8P WLED |
| Signal Interface : | TFT Specific Analog RGB , 30 pins |
| Input Voltage : | 3.3/3.3/5.0/15/-10V (Typ.)(VCC/VDD1/VDD2/VGH/VEE) |
PVI PW065XSA Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 420 cd/m² (Typ.) |
| Contrast Ratio : | 350 : 1 (Typ.) (Transmissive) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.340 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
