Innolux LCD Panel N101BCG-GK1 10.1 inch 222.52×125.11 mm Active Area 234.93×139.17×4.3 mm Outline

Innolux LCD Panel N101BCG-GK1 10.1 inch 222.52×125.11 mm Active Area 234.93×139.17×4.3 mm Outline
Innolux LCD Panel N101BCG-GK1 10.1 inch 222.52×125.11 mm Active Area 234.93×139.17×4.3 mm Outline Innolux LCD Panel N101BCG-GK1 10.1 inch 222.52×125.11 mm Active Area 234.93×139.17×4.3 mm Outline

Large Image :  Innolux LCD Panel N101BCG-GK1 10.1 inch 222.52×125.11 mm Active Area 234.93×139.17×4.3 mm Outline

Product Details:
Place of Origin: Japan,Korea
Brand Name: Innolux LCD Panel
Certification: ISO9001
Model Number: N101BCG-GK1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 500PCS/DAY

Innolux LCD Panel N101BCG-GK1 10.1 inch 222.52×125.11 mm Active Area 234.93×139.17×4.3 mm Outline

Description
Panel Size: 10.1 Inch Resolution: 1366(RGB)×768 , WXGA
Display Mode: IPS, Normally Black, Transmissive Brightness: 400 Cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.) Display Colors: 16.7M (8-bit) , CIE1931 50%
Response Time: 14/11 (Typ.)(Tr/Td) Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
High Light:

tft lcd display

,

innolux lcd screen

Innolux LCD Panel N101BCG-GK1 10.1 inch 222.52×125.11 mm Active Area 234.93×139.17×4.3 mm Outline

Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options.
• All steel construction provides rugged frame for public use environments
• Two independent touch points
• Improved power efficiency and reduced consumption
• ISO9001 approvals.

The reasons you choose us
1).More competitive price! As aprofessional LCD Distributor,we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee,100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time,so we could promise save much more money on the shipping cost and betterservice is offered!
5).Best sale-service!Professional team to service with you before sale, on sale & after service.

INNOLUX N101BCG-GK1 General Features

Panel Brand :INNOLUX
Panel Model :N101BCG-GK1
Panel Type :a-Si TFT-LCD , Panel
Panel Size :10.1 inch
Resolution :1366(RGB)×768 , WXGA
Display Mode :IPS, Normally Black, Transmissive
Active Area :222.52×125.11 mm
Outline :234.93×139.17×4.3 mm
Surface :Glare (Haze 0%), Hard coating (3H)
Brightness :400 cd/m² (Typ.)
Contrast Ratio :800:1 (Typ.)
Display Colors :16.7M (8-bit) , CIE1931 50%
Response Time :14/11 (Typ.)(Tr/Td)
Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :6S6P WLED
Signal Interface :MIPI (4 data lanes) , 39 pins
Input Voltage :3.3/1.2V (Typ.)(VDD/Core_VDD)


INNOLUX N101BCG-GK1 Optical Features

Display Mode :IPS, Normally Black, Transmissive
Brightness :400 cd/m² (Typ.)
Contrast Ratio :800 : 1 (Typ.) (Transmissive)
Display Color :16.7M (8-bit)
Color Gamut :50% NTSC (CIE1931)
Response Time :14/11 (Typ.)(Tr/Td)
Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :Symmetry
White color Chromaticity :Wx:0.313; Wy:0.329
White Variation :1.18/1.25 (Typ./Max.)(5 points)


Below are our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
AE060RN01Innolux6.0"800×600
F050A12-601Innolux5.0"480×854
85C02502-Y21Innolux2.5"320×240
V260B2-P03 Rev.C2Innolux26.0"1366×768
G070YG1-P01Innolux7.0"800×480
F03215-01ZInnolux3.2"360×480
F0352A-01UInnolux3.5"320×480
F07020-01DInnolux7.0"480×234
HB101NA-01CInnolux10.1"1280×800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Details Pictures for Innolux LCD Panel N101BCG-GK1

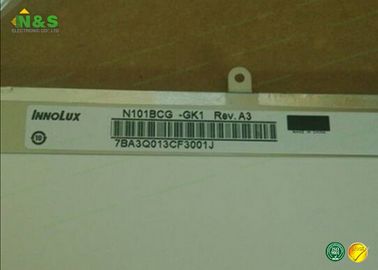

Innolux LCD Panel N101BCG-GK1 10.1 inch 222.52×125.11 mm Active Area 234.93×139.17×4.3 mm Outline 0

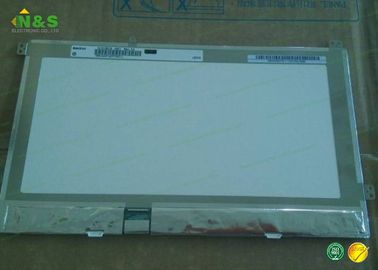

Innolux LCD Panel N101BCG-GK1 10.1 inch 222.52×125.11 mm Active Area 234.93×139.17×4.3 mm Outline 1
