Product Details:
|
| Display Colors: | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 50% | Input Voltage: | 3.3/9.6/18.0/-6.0V (Typ.)(VDD/AVDD/VGH/VGL) |
|---|---|---|---|
| Pixel Density: | 117 PPI | Bezel Area: | 226.0×128.5 Mm (H×V) |
| Color Gamut: | 50% NTSC (CIE1931) | White Variation: | 1.25/1.43 (Typ./Max.)(9 Points) |
| High Light: | industrial touch screen display,industrial lcd screen |
||
Resolution 10.1 inch Low Power Consumption CLAA101ND06CW CPT TFT Color LCD Display
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ72 | CPT | 4.5" | 480×854 |
| CLAN050WD61 6XM | CPT | 5.0" | 720×1280 |
| CLAD015GC41 AX | CPT | 1.5" | 240×240 |
| CLAA090WK05XN | CPT | 9.0" | 1280×720 |
| CLAC080XA12LW | CPT | 8.0" | 1024×768 |
| CLAD015GB01 AX | CPT | 1.5" | 240×240 |
| CLAG045LG71 XX | CPT | 4.5" | 480×854 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
CPT CLAA101ND06CW Mechanical Features
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 117 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch : | 0.2175×0.2088 mm (H×V) |
| Weight : | 285g (Typ.) |
| Active Area : | 222.72×125.28 mm (H×V) |
| Bezel Area : | 226.0×128.5 mm (H×V) |
| Outline Dimension : | 235×143 mm (H×V) |
| Outline Depth : | 4.5±0.3 mm |
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.
CPT CLAA101ND06CW Optical Features
|
Display Mode : |
TN, Normally White, Transmissive |
|
Brightness : |
500 cd/m² (Typ.) |
|
Contrast Ratio : |
600 : 1 (Typ.) (Transmissive) |
|
Display Color : |
262K/16.2M (6-bit / 6-bit + FRC) |
|
Color Gamut : |
50% NTSC (CIE1931) |
|
Response Time : |
25 (Typ.)(Tr+Td) |
|
Viewing Angle : |
70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) |
|
Viewing Direction : |
6 o'clock |
|
White color Chromaticity : |
Wx:0.313; Wy:0.329 |
|
White Variation : |
1.25/1.43 (Typ./Max.)(9 points) |
Primary Competitive Advantages:

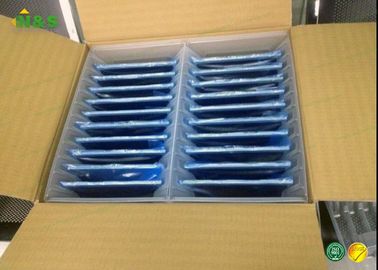

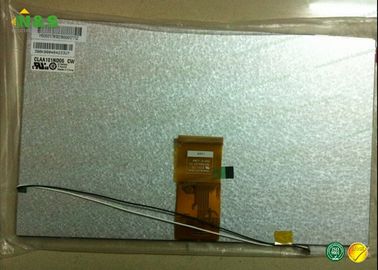

Product Picture for CLAA101ND06CW
