Product Details:
|
White Color Chromaticity: | Wx:0.313; Wy:0.329 | Display Mode: | TN, Normally White, Transmissive |
---|---|---|---|
Outline Depth: | 4.5/5.0 (Typ./Max.) Mm | Weight: | 285g (Typ) |
Bezel Area: | 226.0×128.5 Mm (H×V) | Aspect Ratio: | 16:9 (H:V) |
Panel Size: | 10.1 Inch | Panel Model: | CLAA101NC01CW |
High Light: | industrial lcd screen,industrial lcd panel |

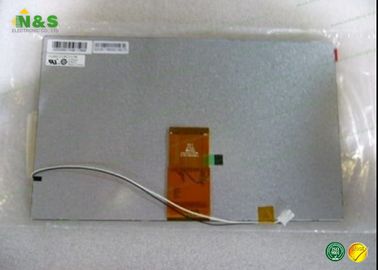

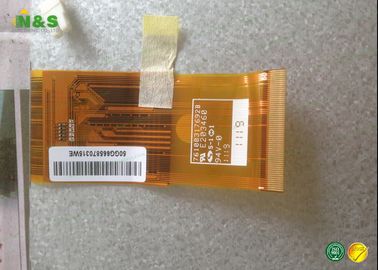

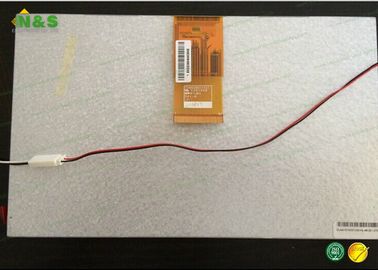

Antiglare CPT CLAA101NC01CW Industrial LCD Displays Ultra thin bezel and 50% Color Gamut
Special Features:
Display type: 10.1'' TFT LCD
Display mode: TN, Normally White, Transmissive
Viewing direction: 6 o'clock
Back light: Edge light type WLED, 8 serial and 6 parallel (140mA/WLED), Lamp Voltage=11.4/12.8/14.2V (Min./Typ./Max.)
lcm brightness: 250 cd/m² (Typ.)
CPT CLAA101NC01CW Backlight System
Lamp Position : | Edge light type | |||||
Lamp Type : | WLED | |||||
Lamp Amount : | 4S7P | |||||
Lamp Shape : | Array | |||||
Lamp Life Time : | 20K(Min.) (Hours) | |||||
Lamp Voltage : | 11.4/12.8/14.2V (Min./Typ./Max.) | |||||
Lamp Current : | 140mA (Typ.) | |||||
Lamps Power Consumption : | 1.79W (Typ.) | |||||
Interface Type : | Connector | |||||
Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLE-2PINS-AC | |
Lamp Driver Board : | No |
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
CLAG045LJ72 | CPT | 4.5" | 480×854 |
CLAN050WD61 6XM | CPT | 5.0" | 720×1280 |
CLAD015GC41 AX | CPT | 1.5" | 240×240 |
CLAA090WK05XN | CPT | 9.0" | 1280×720 |
CLAC080XA12LW | CPT | 8.0" | 1024×768 |
CLAD015GB01 AX | CPT | 1.5" | 240×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
