N101BCG - GK1 10.1 inch Innolux LCD Panel 234.93×139.17×4.3 mm Outline

N101BCG - GK1 10.1 inch Innolux LCD Panel 234.93×139.17×4.3 mm Outline
N101BCG - GK1 10.1 inch Innolux LCD Panel 234.93×139.17×4.3 mm Outline N101BCG - GK1 10.1 inch Innolux LCD Panel 234.93×139.17×4.3 mm Outline

Large Image :  N101BCG - GK1 10.1 inch Innolux LCD Panel 234.93×139.17×4.3 mm Outline

Product Details:
Place of Origin: Japan,Korea
Brand Name: Innolux LCD Panel
Certification: ISO9001
Model Number: N101BCG-GK1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 500PCS/DAY

N101BCG - GK1 10.1 inch Innolux LCD Panel 234.93×139.17×4.3 mm Outline

Description
Panel Type: A-Si TFT-LCD , Panel Panel Size: 10.1 Inch
Resolution: 1366(RGB)×768 , WXGA Surface: Glare (Haze 0%), Hard Coating (3H)
Brightness: 400 Cd/m² (Typ.) Contrast Ratio: 800:1 (Typ.)
Display Colors: 16.7M (8-bit) , CIE1931 50% Lamp Type: 6S6P WLED
High Light:

lcd display panel

,

innolux lcd screen

N101BCG - GK1 10.1 inch Innolux LCD Panel 234.93×139.17×4.3 mm Outline

INNOLUX N101BCG-GK1 General Features

Panel Brand :INNOLUX
Panel Model :N101BCG-GK1
Panel Type :a-Si TFT-LCD , Panel
Panel Size :10.1 inch
Resolution :1366(RGB)×768 , WXGA
Display Mode :IPS, Normally Black, Transmissive
Active Area :222.52×125.11 mm
Outline :234.93×139.17×4.3 mm
Surface :Glare (Haze 0%), Hard coating (3H)
Brightness :400 cd/m² (Typ.)
Contrast Ratio :800:1 (Typ.)
Display Colors :16.7M (8-bit) , CIE1931 50%
Response Time :14/11 (Typ.)(Tr/Td)
Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :6S6P WLED
Signal Interface :MIPI (4 data lanes) , 39 pins
Input Voltage :3.3/1.2V (Typ.)(VDD/Core_VDD)


INNOLUX N101BCG-GK1 Optical Features

Display Mode :IPS, Normally Black, Transmissive
Brightness :400 cd/m² (Typ.)
Contrast Ratio :800 : 1 (Typ.) (Transmissive)
Display Color :16.7M (8-bit)
Color Gamut :50% NTSC (CIE1931)
Response Time :14/11 (Typ.)(Tr/Td)
Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :Symmetry
White color Chromaticity :Wx:0.313; Wy:0.329
White Variation :1.18/1.25 (Typ./Max.)(5 points)


Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-yearexperience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.

Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details:1. Plastic Trays Inside
             2. Layers of cartons
             3. Fragile Sign on top.
             4. Can be customized.

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
V236BJ1-PE2Innolux23.6"1366×768
V390HN1-P02Innolux39"1920×1080
M280HKJ-P02Innolux28.0"1920×1080
PG047IC-01BInnolux4.7"720×1280
PP037IC-01BInnolux3.7"480×800
V650DK1-QS2Innolux65"3840×2160
MT190AW02 V.W CELLInnolux19.0"1440×900
V580HJ1-PD6Innolux58"1920×1080
C02706-01ZInnolux2.7"320×240

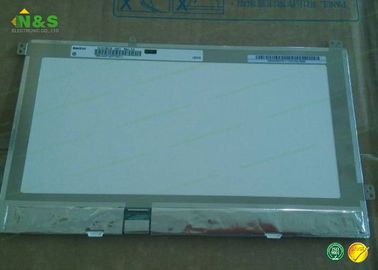

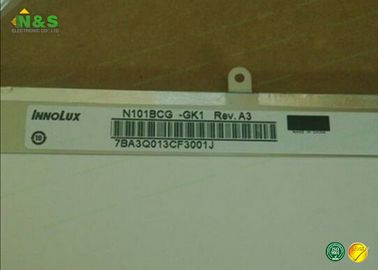

Details Pictures for Innolux LCD Panel N101BCG-GK1

N101BCG - GK1 10.1 inch Innolux LCD Panel 234.93×139.17×4.3 mm Outline 0
