Product Details:
|
| Display Colors: | 262K (6-bit) | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Response Time: | 20 (Typ.)(Tr+Td) | Pixel Density: | 133 PPI |
| Outline Dimension: | 210×127.8 Mm (H×V) | Pixel Pitch: | 0.1905×0.1905 Mm (H×V) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

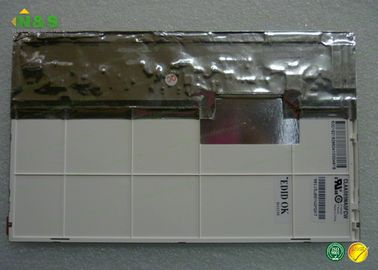

Provide Landscape type,Antiglare and Hard coating CPT CLAA089NA0FCW with 1024(RGB)×600 , WSVGA Resolution of 262K (6-bit)
| Product Features: | ||

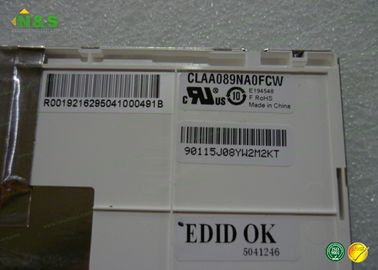

| Model: CLAA089NA0FCW | ||
| Specifications | Panel Brand : | CPT |
| Panel Model : | CLAA089NA0FCW | |
| Panel Type : | a-Si TFT-LCD , Panel | |
| Panel Size : | 8.9 inch | |
| Resolution : | 1024(RGB)×600 , WSVGA | |
| Display Mode : | TN, Normally White, Transmissive | |
| Active Area : | 195.072×114.3 mm | |
| Outline : | 210×127.8×5.5 mm | |
| Surface : | Antiglare, Hard coating (3H) | |
| Brightness : | 300 cd/m² (Typ.) | |
| Contrast Ratio : | 500:1 (Typ.) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 20 (Typ.)(Tr+Td) | |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) | |
1. Samples charge:
According to the model. Pls contact us to get details.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ72 | CPT | 4.5" | 480×854 |
| CLAN050WD61 6XM | CPT | 5.0" | 720×1280 |
| CLAD015GC41 AX | CPT | 1.5" | 240×240 |
| CLAA090WK05XN | CPT | 9.0" | 1280×720 |
| CLAC080XA12LW | CPT | 8.0" | 1024×768 |
| CLAD015GB01 AX | CPT | 1.5" | 240×240 |
| CLAG045LG71 XX | CPT | 4.5" | 480×854 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
2. Samples time:
1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.
Specifications:
|
Panel Size : |
8.9 inch |
|
Dot Resolution : |
1024(RGB)×600 (WSVGA) |
|
Pixel Configuration : |
RGB Vertical Stripe |
|
Pixel Density : |
133 PPI |
|
Aspect Ratio : |
17:10 (H:V) |
|
Form Factor : |
Flat Rectangle Display |
|
Dot Pitch : |
0.0635×0.1905 mm (H×V) |
|
Pixel Pitch : |
0.1905×0.1905 mm (H×V) |
|
Weight : |
190g (Typ.) |
|
Surface : |
Antiglare, Hard coating (3H) |
|
Active Area : |
195.072×114.3 mm (H×V) |
|
Bezel Area : |
198.5×117.7 mm (H×V) |
|
Outline Dimension : |
210×127.8 mm (H×V) |
|
Outline Depth : |
5.2±0.3 mm |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
1 Year warranty
1 Day shipping
0 Return
