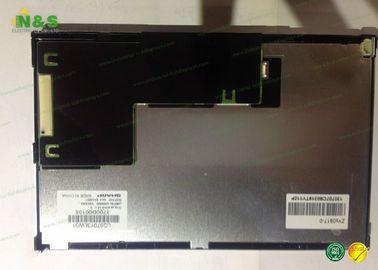

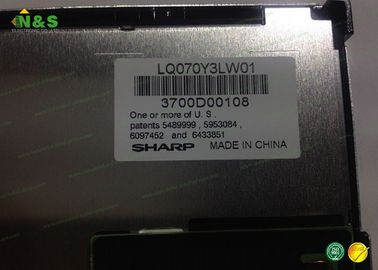

LQ070Y3LW01 Sharp LCD Panel 7.0 inch 163.2×104×9.5 mm Outline

LQ070Y3LW01 Sharp LCD Panel 7.0 inch 163.2×104×9.5 mm Outline
LQ070Y3LW01 Sharp LCD Panel 7.0 inch 163.2×104×9.5 mm Outline LQ070Y3LW01 Sharp LCD Panel 7.0 inch 163.2×104×9.5 mm Outline

Large Image :  LQ070Y3LW01 Sharp LCD Panel 7.0 inch 163.2×104×9.5 mm Outline

Product Details:
Place of Origin: Japan,Korea
Brand Name: Sharp LCD Panel
Certification: ISO9001
Model Number: LQ070Y3LW01
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100 PCS PER DAY

LQ070Y3LW01 Sharp LCD Panel 7.0 inch 163.2×104×9.5 mm Outline

Description
Panel Brand: SHARP Panel Model: LQ070Y3LW01
Panel Size: 7.0 Inch Resolution: 800×480(RGB) , WVGA
Surface: Antiglare, Hard Coating (3H) Brightness: 360 Cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.) Signal Interface: LVDS (1 Ch, 8-bit) , 20 Pins
High Light:

sharp lcd screen

,

sharp lcd flat screen

Sharp LCD Panel LQ070Y3LW01 7.0 inch 152.4×91.44 mm Active Area 163.2×104×9.5 mm Outline



Production Machinery

Panel Brand : SHARP
Panel Model : LQ070Y3LW01
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 800×480(RGB) , WVGA
Display Mode : ASV, Normally Black, Transmissive
Active Area : 152.4×91.44 mm
Outline : 163.2×104×9.5 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 360 cd/m² (Typ.)
Contrast Ratio : 800:1 (Typ.)
Display Colors : 16.2M (6-bit + FRC)
Response Time : 35 (Typ.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 7S2P WLED
Signal Interface : LVDS (1 ch, 8-bit) , 20 pins
Input Voltage : 3.3V (Typ.)



SHARP LQ070Y3LW01 Optical Features

Display Mode : ASV, Normally Black, Transmissive
Brightness : 360 cd/m² (Typ.)
Contrast Ratio : 800 : 1 (Typ.) (Transmissive)
Display Color : 16.2M (6-bit + FRC)
Response Time : 35 (Typ.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.310; Wy:0.340
White Variation : 1.25 (Max.)(5 points)



Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

2. Great quality and high purity
Good quality is one secret for our success.

3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!





Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LM121VB1T02 SHARP 12.1" 640×480
LM121VB1T01 SHARP 12.1" 640×480
LM32015T SHARP 5.7" 320×240
LM8V302D SHARP 7.7" 640×480
LM104VC1T51 R SHARP 10.4" 640×480

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk



Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Plastic Trays Inside

              2. Layers of cartons

              3. Fragile Sign on top.

              4. Can be customized.
