LG LA070WV1- TD04 7 inch tft lcd display 156.24×82.368 mm Active Area

LG LA070WV1- TD04 7 inch tft lcd display 156.24×82.368 mm Active Area
LG LA070WV1- TD04 7 inch tft lcd display 156.24×82.368 mm Active Area

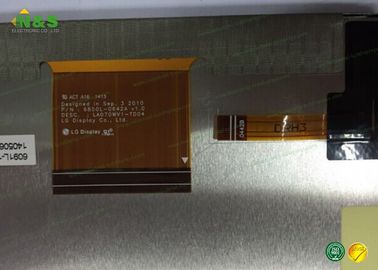

Large Image :  LG LA070WV1- TD04 7 inch tft lcd display 156.24×82.368 mm Active Area

Product Details:
Place of Origin: Japan,Korea
Brand Name: LG Display
Certification: ISO9001
Model Number: LA070WV1-TD04
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100 PCS PER DAY

LG LA070WV1- TD04 7 inch tft lcd display 156.24×82.368 mm Active Area

Description
Panel Type: A-Si TFT-LCD , Panel Panel Size: 7.0 Inch
Resolution: 800(RGB)×480 , WVGA Outline: 167×93×7.5 Mm
Surface: Antiglare Brightness: 500 Cd/m² (Typ.)
Frequency: 60Hz Lamp Type: 5S4P WLED
High Light:

lg lcd display

,

lg replacement screen

LG LA070WV1- TD04 7 inch tft lcd display 156.24×82.368 mm Active Area



Our Service

• Long lasting product cycle for continuity thru all phases of project rollouts and servicing

• Easy-to-install console, Open Frame chassis-mount display

• Slim dimensions enable better enclosure designs

• Multiple mounting options (100mm VESA mount and side brackets)

• All steel construction provides rugged frame for public use environments

• Two independent touch points (with Windows 7 OS)

• Improved power efficiency and reduced consumption

• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals



Production Machinery

Panel Brand : LG Display
Panel Model : LA070WV1-TD04
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 156.24×82.368 mm
Outline : 167×93×7.5 mm
Surface : Antiglare
Brightness : 500 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 5/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 5S4P WLED
Signal Interface : Parallel RGB (1 ch, 6-bit) , 60 pins
Input Voltage : 3.3/10.0/18.5/-8.5V (Typ.)(DVDD/AVDD/VGH/VGL)



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LH530WX1-SH02 LG Display 5.3" 720×1280
LH500WX2-SH01 LG Display 5.0" 720×1280
LH176J03-SH02 LG Display 1.8" 220×176
LH176J04-TH01 LG Display 1.8" 176×220
LM230WF5-TJC3 LG Display 23.0" 1920×1080

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk



LG Display LA070WV1-TD04 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 500 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 5/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.300; Wy:0.315
White Variation : 1.18/1.25 (Typ./Max.)(9 points)



Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Plastic Trays Inside

             2. Layers of cartons

             3. Fragile Sign on top.

             4. Can be customized.
