Product Details:
|
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| Brightness: | 600 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) |
| Display Colors: | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 50% | Response Time: | 5/11 (Typ.)(Tr/Td) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

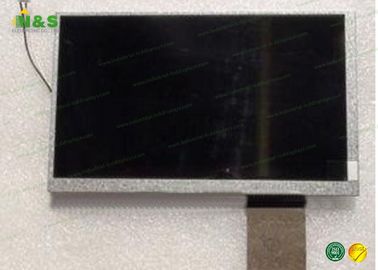

HannStar LCD Display Panel HSD070IDW1-G00 7.0 inch 153.6×86.64 mm Active Area 164.9×100×6 mm Outline
The reasons you choose us
1).More competitive price! As a munufacture,we have our own factory,so the price will be much more competitive
2).Great quality! All the cells we use are A grade cells,100% quality check and full one year warranty!
3).Fast delievery! 500pcs need only 7 days,and usually 3-5day!
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time,so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-servie! From the begainning to the end,any quality problem with our products, new free ones will be shipped!
HannStar HSD070IDW1-G00 General Features
| Panel Brand : | HannStar |
| Panel Model : | HSD070IDW1-G00 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 153.6×86.64 mm |
| Outline : | 164.9×100×6 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 600 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 50% |
| Response Time : | 5/11 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 3S11P WLED |
| Signal Interface : | TTL (1 ch, 6/8-bit) , 60 pins |
| Input Voltage : | 3.0/10/15/-7V (Typ.)(DVDD/AVDD/VGH/VGL) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
| HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
| HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
| HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
| HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
We Can DO for You
1. Quality ensurance
100% original new and A grade,
You can enjoy the real panels directly from original factory;
2. Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3. Delivery ensurance:
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4. After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.
We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation:
We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
Production Machinery
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 134 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.064×0.1805 mm (H×V) |
| Pixel Pitch : | 0.192×0.1805 mm (H×V) |
| Weight : | 170g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 153.6×86.64 mm (H×V) |
| Bezel Area : | 156.0×90.1 mm (H×V) |
| Outline Dimension : | 164.9×100 mm (H×V) |
| Outline Depth : | 5.7±0.3 mm |
| Landscape or Portrait : | Landscape type |
