HannStar HSD070IDW1 - A21 Industrial LCD Displays 7.0 inch 153.6×86.64 mm Active Area

HannStar HSD070IDW1 - A21 Industrial LCD Displays 7.0 inch 153.6×86.64 mm Active Area
HannStar HSD070IDW1 - A21 Industrial LCD Displays 7.0 inch 153.6×86.64 mm Active Area

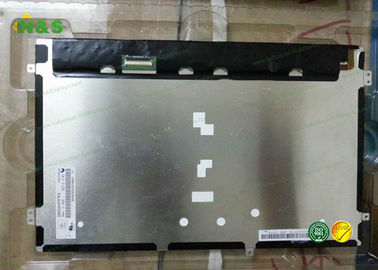

Large Image :  HannStar HSD070IDW1 - A21 Industrial LCD Displays 7.0 inch 153.6×86.64 mm Active Area

Product Details:
Place of Origin: Japan,Korea
Brand Name: HannStar
Certification: ISO9001
Model Number: HSD070IDW1-A21
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100 PCS PER DAY

HannStar HSD070IDW1 - A21 Industrial LCD Displays 7.0 inch 153.6×86.64 mm Active Area

Description
Panel Type: A-Si TFT-LCD , Panel Panel Size: 7.0 Inch
Resolution: 800(RGB)×480 , WVGA Surface: Antiglare, Hard Coating (3H)
Brightness: 200 Cd/m² (Typ.) Contrast Ratio: 500:1 (Typ.)
Display Colors: 262K/16.2M (6-bit / 6-bit + FRC) Lamp Type: 3S7P WLED
High Light:

industrial touch screen display

,

industrial lcd screen

HannStar HSD070IDW1 - A21 Industrial LCD Displays 7.0 inch 153.6×86.64 mm Active Area



HannStar HSD070IDW1-A21 General Features

Panel Brand : HannStar
Panel Model : HSD070IDW1-A21
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 153.6×86.64 mm
Outline : 165×104×5.4 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K/16.2M (6-bit / 6-bit + FRC)
Response Time : 5/20 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 3S7P WLED
Signal Interface : Parallel RGB (1 ch, 6/8-bit) , 60 pins
Input Voltage : 3.0/10.0/15/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)



Our Advantage

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.

Q6: Can you customize according to our designs and put our logo on the products?

A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.



HannStar HSD070IDW1-A21 General Features

Panel Brand : BOE
Panel Model : BP070WS1-500
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 1024(RGB)×600 , WSVGA
Display Mode : ADS, Normally Black, Transmissive
Active Area : 153.6×90 mm
Outline : 164.05×100.86 mm
Surface : Hard coating (3H)
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 900:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 50%
Response Time : 30 (Typ.)(Tr+Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit]
Lamp Type : 5S4P WLED [8S6P: 8 Serial, 6 Parallel] Without Driver
Signal Interface : LVDS (1 ch, 8-bit) , 31 pins
Input Voltage : 3.7V (Typ.)



HannStar HSD070IDW1-A21 Mechanical Features

Panel Size : 7.0 inch
Dot Resolution : 800(RGB)×480 (WVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 134 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.064×0.1805 mm (H×V)
Pixel Pitch : 0.192×0.1805 mm (H×V)
Weight : 130g (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 153.6×86.64 mm (H×V)
Bezel Area : 156.0×89.04 mm (H×V)
Outline Dimension : 165×104 mm (H×V)
Outline Depth : 5.1±0.3 mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
HSD043B8W2-C01 HannStar 4.3" 480×800
HSD070IDW3-A00-0299 HannStar 7.0" 800×480
HSD050F9W1-A00 HannStar 5.0" 480×272
HSD050FDW1-A00 HannStar 5.0" 800×480
HSD043F9W1-A00 HannStar 4.3" 480×272
HSD050B8W4-A00 HannStar 5.0" 480×854

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk



Packing & Delivery for our LCD Screen Panel Replacements:

1. Anti-static Bag Packing.

2. Anti-Shock Bubble Bag Packing

3. Foam and Hard Carton Packing

4. Picked up by forward and delivered by express services.
