Product Details:
|
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Active Area: | 101.568×76.176 Mm | Input Voltage: | 3.3V (Typ.) |
| Display Colors: | 262K (6-bit) , CIE1931 50% | Response Time: | 20 (Typ.)(Tr+Td) |
| Viewing Angle: | 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) | Frequency: | 60Hz |
| High Light: | black and white lcd display,lcd panel screen |
||

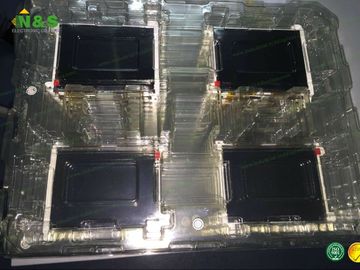

Tianma TM050QDH01 computer monitor lcd Active Area 101.568×76.176 mm Antiglare
Our Advantages
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Packing & Delivery for our LCD Screen Panel Replacements
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
TIANMA TM050QDH01 General Features:
| Panel Brand : | TIANMA |
| Panel Model : | TM050QDH01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 5.0 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 101.568×76.176 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
TIANMA TM050QDH01 Backlight System
| Panel Size : | 5.0 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 160 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0529×0.1587 mm (H×V) |
| Pixel Pitch : | 0.1587×0.1587 mm (H×V) |
| Weight : | 82.2±0.5g |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 101.568×76.176 mm (H×V) |
| Outline Depth : | 7.9/15.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on up, down, left slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
