CPT CLAA057VA01CT 5.7 inch Industrial LCD Displays Contrast Ratio 300 / 1

CPT CLAA057VA01CT 5.7 inch Industrial LCD Displays Contrast Ratio 300 / 1
CPT CLAA057VA01CT 5.7 inch Industrial LCD Displays Contrast Ratio 300 / 1 CPT CLAA057VA01CT 5.7 inch Industrial LCD Displays Contrast Ratio 300 / 1

Large Image :  CPT CLAA057VA01CT 5.7 inch Industrial LCD Displays Contrast Ratio 300 / 1

Product Details:
Place of Origin: Japan,Korea
Brand Name: CPT
Certification: ISO9001
Model Number: CLAA057VA01CT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100 PCS PER DAY

CPT CLAA057VA01CT 5.7 inch Industrial LCD Displays Contrast Ratio 300 / 1

Description
Panel Brand: CPT Panel Model: CLAA057VA01CT
Resolution: 640(RGB)×480 , VGA Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Hard Coating (3H) Brightness: 180 Cd/m² (Typ.)
Response Time: 30 (Typ.)(Tr+Td) Viewing Angle: 70/70/40/60 (Typ.)(CR≥10) (L/R/U/D)
High Light:

industrial touch screen display

,

industrial lcd panel



CPT CLAA057VA01CT 5.7 inch Industrial LCD Displays Contrast Ratio 300 / 1



Why Choose US

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 13 years experience in intelligent controller R&D and manufacturing.

6. Strong R&D term supports perfect customized projects.

7. Supplier of famous brands: Sun Rain, Phnix, Chigo, Rechi, Microwell SRO etc.

8. Fabulous after-sale service.



CPT CLAA057VA01CT General Features

Panel Brand : CPT
Panel Model : CLAA057VA01CT
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 5.7 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 116.16×87.12 mm
Outline : 127×98.43×8.15 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 180 cd/m² (Typ.)
Contrast Ratio : 300:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 50%
Response Time : 30 (Typ.)(Tr+Td)
Viewing Angle : 70/70/40/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : TTL (1 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)(VCC)



CPT CLAA057VA01CT Backlight System

Lamp Position : Edge light type
Lamp Type : WLED
Lamp Life Time : 20K(Typ.) (Hours)
Interface Type : Included in panel signal interface
Lamp Driver Board : Embedded (LED Driver)
Lamp Driver Board : 5.0V (Typ.)
Lamp Driver Board : 300/350mA (Typ./Max.)



CPT CLAA057VA01CT Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 180 cd/m² (Typ.)
Contrast Ratio : 300 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 30 (Typ.)(Tr+Td)
Viewing Angle : 70/70/40/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.43 (Typ./max.)(9 points)

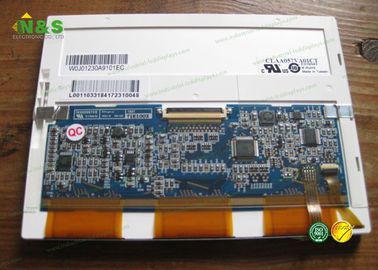

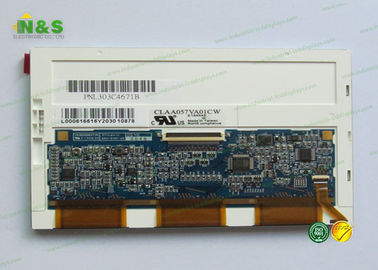

Details Pictures for CPT CLAA057VA01CT



CPT CLAA057VA01CT 5.7 inch Industrial LCD Displays Contrast Ratio 300 / 1 0



CPT CLAA057VA01CT 5.7 inch Industrial LCD Displays Contrast Ratio 300 / 1 1
