Product Details:
|
| Input Voltage: | 5.0V (Typ.) | Brightness: | 250 Cd/m² (Typ.) |
|---|---|---|---|
| Display Colors: | 16.7M (6-bit + Hi-FRC) | Aspect Ratio: | 16:10 (H:V) |
| Holes & Brackets: | Side Mounting Holes (4-M3) On Left, Right Bezel | Pixel Density: | 89 PPI |
| High Light: | lg display panel,lg replacement screen |
||
60Hz 19.0 inch LG LCD Panel LM190WX1- TLL1 a - Si TFT lcd digital display
Specification of LM190WX1-TLL1 tft lcd :
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1440(RGB)×900 (WXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 89 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0945×0.2835 mm (H×V) |
| Pixel Pitch : | 0.2835×0.2835 mm (H×V) |
| Weight : | 1.67/1.76Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 408.24×255.15 mm (H×V) |
| Bezel Area : | 412.24×259.15 mm (H×V) |
| Outline Dimension : | 428×278 mm (H×V) |
| Outline Depth : | 15.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Related Products:
Industrial TFT LCD (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2", 3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2", 10.4", , etc.
Our Advantages for LCD panel:
| 1 | FOG automatical device can ensure the capacity of 1000,000 per month. |
| 2 | MOQ can be 100pcs, lead time of standard products is 20 days. |
| 3 | Reliability test and full examination to ensure the high quality of the display. |
| 4 | OEM&ODM are provided for TFT/TN LCD/Plastic Moulding. |
| 5 | Strictly ISO quality management system. |
| 6 | Mature and Professional R&D and after service. |
| 7 | Various cooperation experience with big brands |
N&S supplies integrated LCD touch display solutions, which will make the process of your development easy. The module seals LCD, touch screen, the foundation hardware and software (driver), and universal connection (USB or RS232) to PC and embedded system.We focuses on LCD display module integrate touch screen in medium and small size between 5~12.1 inches. Touch screen technology is the most popular form in applications ranging from industry to consumer . It is more convenient compaired with key button control technology. The input signal includes HDMI, AV, VGA, S-video, DVI, YPbPr and 3G-SDI, etc.
Optical Features :
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |

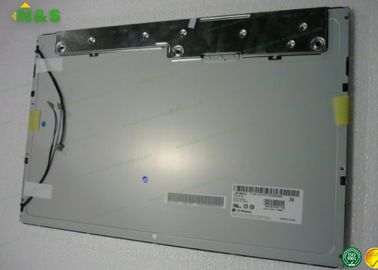

Details Pictures for the LM190WX1-TLL1 Screen Display Panel:
