Product Details:
|
| Lamp Type: | CCFL | Signal Class: | Parallel Data (8-bit) |
|---|---|---|---|
| Panel Model: | A050FW03 V0 | Panel Size: | 5.0 Inch |
| Signal Category: | Parallel Data | Surface: | Antiglare |
| High Light: | auo display panel,auo lcd screen |
||
AUO 5 inch Full LCD Module With Touch Screen Replacement A050FW03
Backlight System & Signal Interface
<
| Panel Brand : | AUO |
| Panel Model : | A050FW03 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 5.0 inch |
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Amount : | 6S2P |
| Lamp Shape : | Array |
| Lamp Life Time : | 10K(Min.) (Hours) |
| Lamp Voltage : | 18.6V (Typ.) |
| Lamp Current : | 40mA (Typ.) |
| Lamps Power Consumption : | 744.0/897.6mW (Typ./Max.) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | No |
| Signal Category : | TTL |
| Signal Class : | Parallel RGB (1 ch, 8-bit) + SPI |
| Input Voltage for Panel : | 3.3V (Typ.)(VDD) |
| Input Current for Panel : | 21/28mA (Typ./Max.) |
| Voltage for Display Signals : | 0≤VIL≤0.3VDDIO; 0.7VDDIO≤VIH≤VDDIO |
| Interface Type : | FPC |
Competitive Advantage:
1. We are a leading manufacturer of LCD products for more than 10 years.
2. We got the ISO9001 quality management system certification.
3. We have our own R&D team, and accept OEM order as per customer’s design.
4. We are the 5-years four star member of Globalsources and the Three year Gold supplier in Alibaba.
5. Our main material LCD panels all are directly imported from Samsung and LG in Korea.
6. All products win the certificate of CE,CCC,FCC and RoHS.
7. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 5 days.
8. 3-years warranty is offered.
We have implemented a strict and complete quality control system which ensures that all parts we offer are of good quality.
We have experienced workers and professional equipment to inspect the parts before shipment and always inform clients the true conditions of the parts.
We would appreciate the opportunity of serving your component needs. You will be pleased to do business with us for our best services and high quality components.
Introductions:
We still have other models and more in stock:
Sizes: 7.0, 8.9", 9.7", 10.0", 10.1", 10.2", 10.4", 11.1", 11.6", 12.1", 12.5", 13.1", 13.3", 14.0", 14.1", 14.5", 15.0" 15.4", 15.6", 16.0", 16.4", 17.0", 17.1", 17.3", 18.4"
Resolutions: XGA, WXGA, WXGA HD, , WXGA+, WXGA++, WSVGA, WUXGA, WUXGA+, WUXGA++, Full-HD
Backlight technologies: LED, SLIM LED, 1 CCFL, 2 CCFL
Sample Charge:
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time: 3 day for stock models

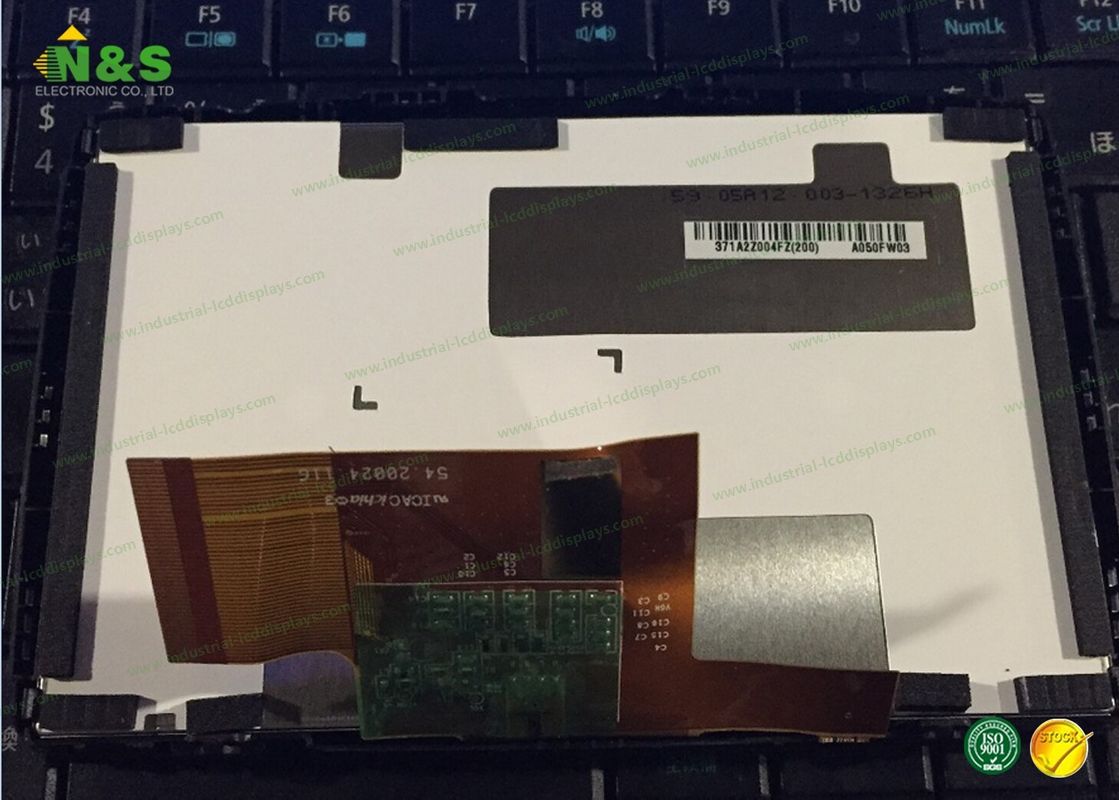

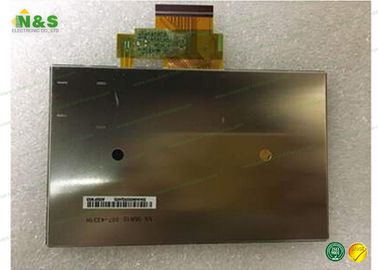

Pictures of A050FW03 Display:
Tag: Industrial LCD Panel, LCD Display
