Product Details:
|
| Contrast Ratio: | 500:1 (Typ.) | Frequency: | 60Hz |
|---|---|---|---|
| Panel Size: | 8.5 Inch | Active Area: | 184.8×110.88 Mm |
| Surface: | Antiglare, Hard Coating (3H) | Outline: | 210×134×10.5 Mm |
| High Light: | auo display panel,auo lcd screen |
||
8.5" Antiglare with Embedded G085VW01 V0 of character lcd module AUO LCD Panel
N&S Features :
1.New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment, Aluminum Front Bezel with rugged housing
4. Industrial design to protect the LCD screen, mounting on the outdoor application
5. VGA DVI interfaces
we offer high quality, fast delivery, competitive price for our customers;
> Please send your RFQ(request for quoting) to get latest price;
> We will ship the items within 2 working days after receive the payment;
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways;
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices ;
What can we do for you:
Our LCD Panel inventory lines mostly covered small size from
1.5",2.0",2.2",2.5",3.0",3.5",4.0",4.2",4.3",4.7",5.0",5.5",5.7",6.0",6.4",7.0",8.0",10.1",10.4",12.1" etc.
What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Payment methods?
T/T and Western union etc. The details of our payment terms is showing above.
How long is the warranty period?
Usually 1 Year without damaged by people actions. It depends on different products.
What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
<
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 20/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.300; Wy:0.320 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Total Power Consumption : | 3.5W (Typ.) |
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Life Time : | 50K(Min.) (Hours) |
| Lamp Replaceable : | Replaceable |
| Interface Type : | Connector |
AUO G085VW01 V0 Signal Interface
Signal Category : TTL
Signal Class : CMOS (1 ch, 6-bit)
Input Voltage for Panel : 3.3V (Typ.)
Input Current for Panel : 135/150/200mA (Min./Typ./Max.)
Panel Power Consumption : 0.5W (Typ.)
Interface Type : Connector

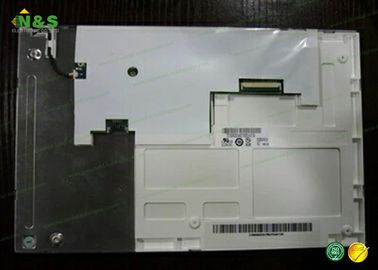

Picture for AUO G085VW01 V0 :
