Product Details:
|
| Panel Size: | 8.4 Inch | Dot Resolution: | 800(RGB)×600 (SVGA) |
|---|---|---|---|
| Pixel Configuration: | RGB Vertical Stripe | Pixel Density: | 119 PPI |
| Aspect Ratio: | 4:3 (H:V) | Dot Pitch: | 0.071×0.213 Mm (H×V) |
| Weight: | 250g (Typ.) | Surface: | Antiglare, Hard Coating (3H) |
| High Light: | auo display panel,auo lcd screen |
||

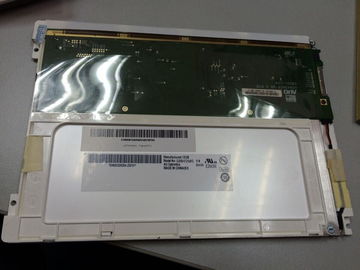

High Contrast AUO LCD Panel with 8.4 Inch Touch Color Screen Monitor
Specifications:
| Panel Brand : | AUO |
| Panel Model : | G084SN05 V9 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 8.4 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 170.4×127.8 mm |
| Outline : | 203×142.5×8 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 45% |
| Response Time : | 20/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 strings WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Model | Size | Resolution | cd/m2 | C/R | Backlight | Interface |
| G084SN05 V9 | 8.4" | 800×600 | 450 | 600:1 | WLED | LVDS |
| G084SN05 V8 | 8.4" | 800×600 | 450 | 600:1 | WLED | LVDS |
| G084SN05 V7 | 8.4" | 800×600 | 450 | 600:1 | CCFL | LVDS |
| G084SN05 V6 | 8.4" | 800×600 | 350 | 500:1 | CCFL | TTL |
| G084SN05 V5 | 8.4" | 800×600 | 350 | 500:1 | CCFL | Analog + Digital |
| G084SN05 V4 | 8.4" | 800×600 | 350 | 500:1 | CCFL | LVDS |
| G084SN05 V3 | 8.4" | 800×600 | 450 | 500:1 | CCFL | LVDS |
| G084SN05 V2 | 8.4" | 800×600 | 350 | 500:1 | CCFL | Analog + Digital |
| G084SN05 V1 | 8.4" | 800×600 | 280 | 500:1 | CCFL | LVDS |
| G084SN05 V0 | 8.4" | 800×600 | 350 | 500:1 | CCFL | LVDS |
| Panel Model | Size | Resolution | cd/m2 | C/R | Backlight | Interface |
| LQ084S3LG03 | 8.4" | 800×600 | 330 | 450:1 | WLED | LVDS |
| G084SN05 V9 | 8.4" | 800×600 | 450 | 600:1 | WLED | LVDS |
| TM084SDHG01 | 8.4" | 800×600 | 350 | 500:1 | WLED | LVDS |
| G084SN03 V3 | 8.4" | 800×600 | 250 | 600:1 | WLED | LVDS |
| G084SN05 V8 | 8.4" | 800×600 | 450 | 600:1 | WLED | LVDS |
| AA084SB01--T2 | 8.4" | 800×600 | 480 | 570:1 | WLED | LVDS |
| NL8060BC21-11 | 8.4" | 800×600 | 400 | 800:1 | WLED | LVDS |
| NL8060BC21-11D | 8.4" | 800×600 | 400 | 800:1 | WLED | LVDS |
| NL8060AC21-21D | 8.4" | 800×600 | 400 | 800:1 | WLED | LVDS |
| NL8060BC21-10 | 8.4" | 800×600 | 400 | 600:1 | WLED |
LVDS
|
Description:
Why buy from us >>>
Fast / Safely / Conveniently
• N&S ELECTRONIC CO,.LTD is a professional distributor for One-Stop LCD PANELS and Electronic Components for both Medium And Small Enterprises. Since We Established our Headquarter in HongKong in 2010, we Had Set Up Our Offices In Shenzhen, Singapore, Malaysia, Canada and United States
• Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.
How to buy >>>
• Contact us by email & sent your inquire with your Transport destination .
• Online chat, the commissioner would be responded ASAP.
Service >>>
• Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
• We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
• We are committed to providing fast, convenient and safe transportation service to global buyer.
Competitive Advantage:
Competitive price;
Fast delivery;
Strict quality control
365 days warranty;
Our team have more than 10 years experience on LCD PANEL and ELECTRONIC COMPONENTS business,
will offer you High Performance and hard-to-find LCD PANELs or Electronic Components.
