TFT Hdmi LCM Panel Lcd Monitor 19 Inch G190EAN01.3 1280×1024

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

TFT Hdmi LCM Panel Lcd Monitor 19 Inch G190EAN01.3 1280×1024

TFT Hdmi LCM Panel Lcd Monitor 19 Inch G190EAN01.3 1280×1024
TFT Hdmi LCM Panel Lcd Monitor 19 Inch G190EAN01.3 1280×1024 TFT Hdmi LCM Panel Lcd Monitor 19 Inch G190EAN01.3 1280×1024

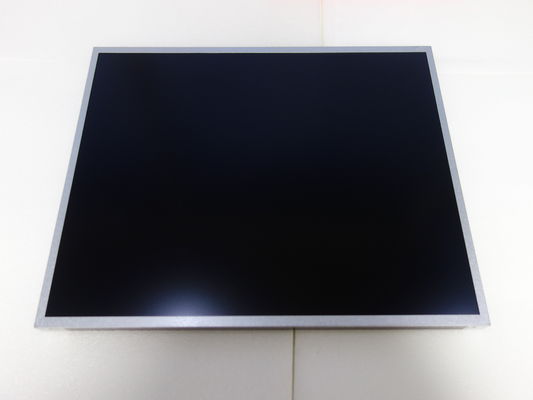

Large Image :  TFT Hdmi LCM Panel Lcd Monitor 19 Inch G190EAN01.3 1280×1024

Product Details:
Place of Origin: TaiWan
Brand Name: AUO
Model Number: G190EAN01.3
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: Western Union,PAPLY,BANK TRANSFER
Supply Ability: 500

TFT Hdmi LCM Panel Lcd Monitor 19 Inch G190EAN01.3 1280×1024

Description
Panel Brand: AUO Panel Model: G190EAN01.3
Panel Size: 19.0" Panel Type: A-Si TFT-LCD, LCM
Resolution: 1280(RGB)×1024, SXGA, 86PPI Touch Screen: Without
High Light:

LCM Panel Lcd Monitor 19 Inch

,

G190EAN01.3

,

1280×1024 Panel Lcd Monitor

TFT Hdmi LCM Panel Lcd Monitor 19 Inch G190EAN01.3 1280×1024



G190EAN01.3 AUO 19" LCM 1280×1024 Without Touch screen And Industrial,Medical Imaging

AUO G190EAN01.3 Mechanical Details

Pixel Features : Resolution 1280(RGB)×1024, SXGA Dot Pitch(mm) 0.098×0.294 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.294×0.294 (H×V) [86PPI]
Mechanical Size : Active Area(mm) 376.32(H) × 301.056(V) Bezel Area(mm) 380.32(H) × 305.06(V)
Outline Dim.(mm) 396(H) × 324(V) Depth(mm) 15.8 (Max.)
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 5:4 (H:V) Orientation Landscape type
Mounting : Side mounting holes (4-M3) on left, right bezel
Other Spec : Weight 1.70±0.15Kgs Treatment Antiglare
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • TFT Hdmi LCM Panel Lcd Monitor 19 Inch G190EAN01.3 1280×1024 0 Back to Top

AUO G190EAN01.3 Optical Details

Basic Information : Luminance(cd/m²) 330 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)  Display Mode AHVA, Normally Black, Transmissive
Best View on Symmetry Response(ms) 13/12 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.265; Y:0.305 Display Colors 16.7M (8-bit)
Color Temperature 10776K White Uniformity 1.25 (Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 72% sRGB 96% coverage
Adobe RGB 74% coverage DCI-P3 75% coverage
Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.



We also have other industrial LCD panels, pls contact to us for the further information



Panel Model Brand Size
X139BLB01.0 AUO 1.39"
H381DLN01.0 AUO 3.8"
H546DAN01.0 AUO 50"
H546DAN01.0 AUO 19.5"
H347QTN01.0 AUO 3.5"
H515DAN01.0 AUO 5.2"
H499TAN03.1 AUO 5.0"
G150XG03 V3 CELL AUO 15.0"
B080XAN03.1 CELL AUO 7.9"
H572DAN01.2 AUO 5.7"
H598AAN01.0 AUO 6.0"





Packing & Delivery for our LCD Screen Panel Replacements:

1. Anti-static Bag Packing.

2. Anti-Shock Bubble Bag Packing

3. Foam and Hard Carton Packing

4. Picked up by forward and delivered by express services.

Packaging & Delivery

Packaging Details:

Safey package

Plastic trays inside

2 layes of cartons

Fragile sign on top

Can be customize 3.5 inch spare parts auo used lcd panel

Delivery Detail: 1-3 Working Days





Our Services

Payment:

(1) Bank transfer , Western Union , T/T, Paypal are accepted.

(2) If any problem of payment, you can contact with us.

Shipment:

(1) Worldwide shipping. Any delivery way you want to choose, please contact us.

(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.

(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.

(4) Delivery time is approximate:

------Via DHL, Fedex, UPS: 3-7working days

------Via EMS:7-15 working days

------Via Direct Express Line:1-3 working days.



TFT Hdmi LCM Panel Lcd Monitor 19 Inch G190EAN01.3 1280×1024 1TFT Hdmi LCM Panel Lcd Monitor 19 Inch G190EAN01.3 1280×1024 2
