G190EG02 V104 AUO LCD Panel 19 Inch 1280×1024 Without Touchscreen

G190EG02 V104 AUO LCD Panel 19 Inch 1280×1024 Without Touchscreen
G190EG02 V104 AUO LCD Panel 19 Inch 1280×1024 Without Touchscreen

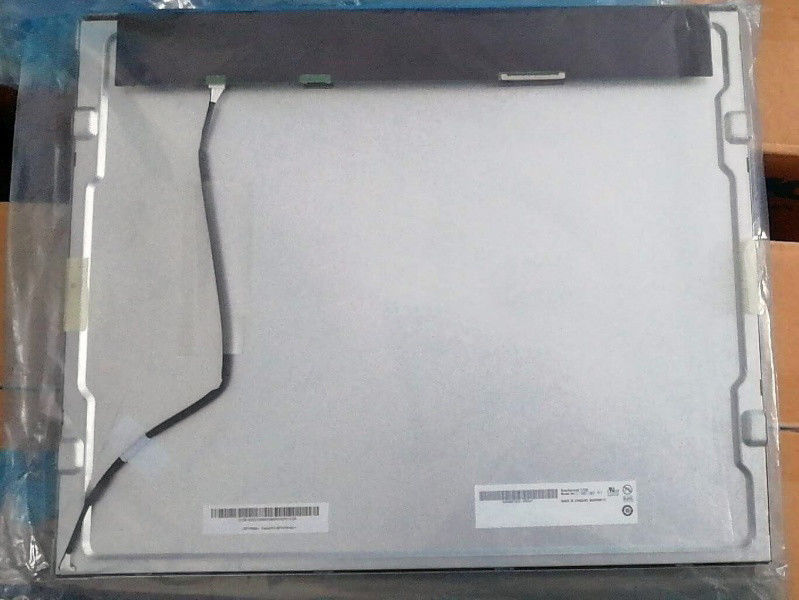

Large Image :  G190EG02 V104 AUO LCD Panel 19 Inch 1280×1024 Without Touchscreen

Product Details:
Place of Origin: TaiWan
Brand Name: AUO
Model Number: G190EG02 V104
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: Western Union,PAPLY,BANK TRANSFER
Supply Ability: 500

G190EG02 V104 AUO LCD Panel 19 Inch 1280×1024 Without Touchscreen

Description
Brand: AUO Model: G190EG02 V104
Diagonal Size: 19.0 Inch Pixel Format: 1280(RGB)×1024 [SXGA] 86PPI
Type: A-Si TFT-LCD, LCM Touch Panel: Without
High Light:

G190EG02 V104

,

AUO LCD Panel 19 Inch

,

19 Inch AUO LCD Panel

G190EG02 V104 AUO LCD Panel 19 Inch 1280×1024 Without Touchscreen



G190EG02 V104 AUO 19" LCM 1280×1024 Without Touchscreen And Industrial,Medical Imaging

AUO G190EG02 V104 Mechanical Features

Screen Size : 19.0"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1280(RGB)×1024, SXGA RGB Vertical Stripe 0.098×0.294 mm 0.294×0.294 mm [86PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
376.32×301.056 mm 380.32×305.06 mm 396×324 mm 15.8 (Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 5:4 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
1.74Kgs (Typ.) - Antiglare
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • G190EG02 V104 AUO LCD Panel 19 Inch 1280×1024 Without Touchscreen 0 Back to Top

AUO G190EG02 V104 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
350 cd/m² (Typ.) MVA, Normally Black, Transmissive 2000:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 89/89/89/89 (Typ.)(CR≥10) 15/5 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 16.7M (8-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
73% 93% 72%
DCI-P3 Coverage Rec.2020 Coverage Remarks
75% 54% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.25/1.33 (Typ./Max.)(9 points)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
