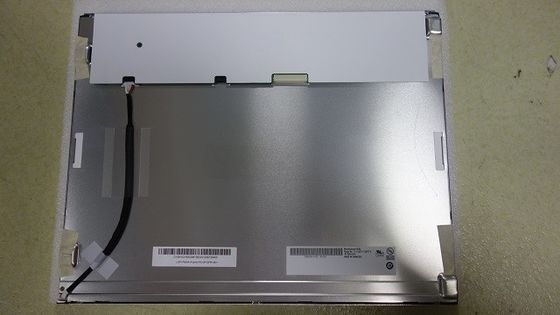

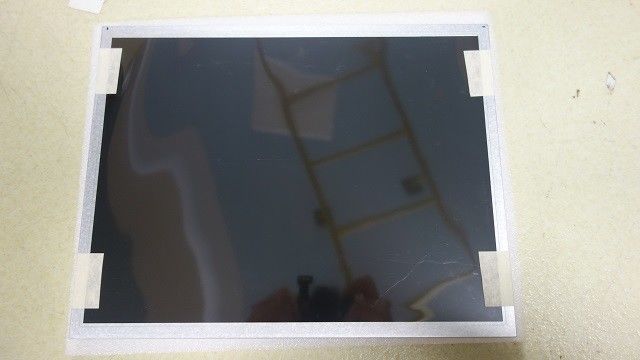

6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection

6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection
6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection 6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection

Large Image :  6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection

Product Details:
Place of Origin: TaiWan
Brand Name: AUO
Model Number: G150XTN06.B
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: Western Union,PAPLY,BANK TRANSFER
Supply Ability: 500

6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection

Description
Brand: AUO Model: G150XTN06.B
Diagonal Size: 15.0 Inch Type: A-Si TFT-LCD , LCM
Pixel Format: 1024(RGB)×768 [XGA] 85PPI Touch Panel: Without
High Light:

15 Inch AUO LCD Panel

,

Anti Reflective AUO LCD Panel

,

G150XTN06.B

6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection



G150XTN06.B AUO 15" LCM 1024×768 Without Touchscreen And Industrial,outdoor High Brightness

AUO G150XTN06.B Optical Details

Basic Information :
Luminance
800 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
5.7/2.3 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/70/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6485K
White Variation
1.25/1.33 (Typ./max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
60%
sRGB
84% coverage
Adobe RGB
63% coverage
DCI-P3
63% coverage
Rec.2020
45% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • 6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection 0 Back to Top

AUO G150XTN06.B Mechanical Details

Pixel Features :
Number of Pixel
1024(RGB)×768, XGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.099×0.297 mm
Pixel Pitch(W×H)
0.297×0.297 mm [85PPI]
Physical Size :
Active Viewing
304.128(W)×228.096(H) mm
Overall Dim.
326.5(W)×253.5(H) mm
Bezel Opening
311.9(W)×236.85(H) mm
Overall Depth
10.0 (Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
1.00Kgs (Max.)
Surface
Antireflection
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.



We also have other industrial LCD panels, pls contact to us for the further information





Panel Model Brand Size
X139BLB01.0 AUO 1.39"
H496TAN01.0 AUO 5.0"
H496TAN01.0 AUO 5.5"
H496TAN01.0 AUO 10.1"
H496TAN01.0 AUO 5.5"
H496TAN01.0 AUO 5.2"
H496TAN01.0 AUO 1.6"
H496TAN01.0 AUO 4.6"
H496TAN01.0 AUO 5.2"
H496TAN01.0 AUO 4.5"
H496TAN01.0 AUO 4.7"
H496TAN01.0 AUO 5.0"
H496TAN01.0 AUO 4.3"
