G150XAN01.0 AUO LCD Panel 15" LCM 0.297×0.297mm Pixel Pitch

G150XAN01.0 AUO LCD Panel 15" LCM 0.297×0.297mm Pixel Pitch
G150XAN01.0 AUO LCD Panel 15" LCM 0.297×0.297mm Pixel Pitch G150XAN01.0 AUO LCD Panel 15" LCM 0.297×0.297mm Pixel Pitch

Large Image :  G150XAN01.0 AUO LCD Panel 15" LCM 0.297×0.297mm Pixel Pitch

Product Details:
Place of Origin: TaiWan
Brand Name: AUO
Model Number: G150XAN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: Western Union,PAPLY,BANK TRANSFER
Supply Ability: 500

G150XAN01.0 AUO LCD Panel 15" LCM 0.297×0.297mm Pixel Pitch

Description
Manufacturer: AUO Model Name: G150XAN01.0
Screen Size: 15.0 Inch Screen Type: LCM , A-Si TFT-LCD
Pixel Number: 1024(RGB)×768 (XGA) 85PPI Touchscreen: Without
High Light:

AUO LCD Panel 15

,

G150XAN01.0

,

0.297×0.297mm AUO LCD Panel

G150XAN01.0 AUO LCD Panel 15" LCM 0.297×0.297mm Pixel Pitch



G150XAN01.0 AUO 15" LCM 1024×768 Without Touchscreen And Industrial

AUO G150XAN01.0 Mechanical Details

Pixel Features : Resolution 1024(RGB)×768, XGA Dot Pitch(mm) 0.099×0.297 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.297×0.297 (H×V) [85PPI]
Mechanical Size : Active Area(mm) 304.128(H) × 228.096(V) Bezel Area(mm) 309.9(H) × 236.3(V)
Outline Dim.(mm) 326.5(H) × 253.5(V) Depth(mm) 9.0 (Max.)
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting : Side mounting holes (4-M2) on left, right bezel
Other Spec : Weight 920g (Max.) Treatment Antiglare, Hard coating (3H)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • G150XAN01.0 AUO LCD Panel 15" LCM 0.297×0.297mm Pixel Pitch 0 Back to Top

AUO G150XAN01.0 Optical Details

Basic Information : Luminance(cd/m²) 350 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)  Display Mode AHVA, Normally Black, Transmissive
Best View on Symmetry Response(ms) 25 (Typ.)(Tr+Td)
Color Performance : White Coordinate X:0.313; Y:0.329 Display Colors 16.2M (6-bit + FRC)
Color Temperature 6485K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 60% sRGB 78% coverage
Adobe RGB 62% coverage DCI-P3 62% coverage
Rec.2020 45% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information



Panel Model Brand Size
H495TAN01.1 AUO 5.0"
H496TAN01.0 AUO 5.0"
H496TAN01.0 AUO 5.5"
H496TAN01.0 AUO 10.1"
H496TAN01.0 AUO 5.5"
H496TAN01.0 AUO 5.2"
H496TAN01.0 AUO 1.6"
H496TAN01.0 AUO 4.6"
H496TAN01.0 AUO 5.2"
H496TAN01.0 AUO 4.5"
H496TAN01.0 AUO 4.7"
H496TAN01.0 AUO 5.0"
H496TAN01.0 AUO 4.3"
H496TAN01.0 AUO 43"



After-sale service:
1. Our products have two years warranty service ,lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. We offered training to our customer who includes operating and maintenance of our products.
4. In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare





Packaging & Delivery

Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

Delivery Detail: 2-3 days after receipt of payment

Payment terms: We accept T/T, PayPal, Western Union and others.

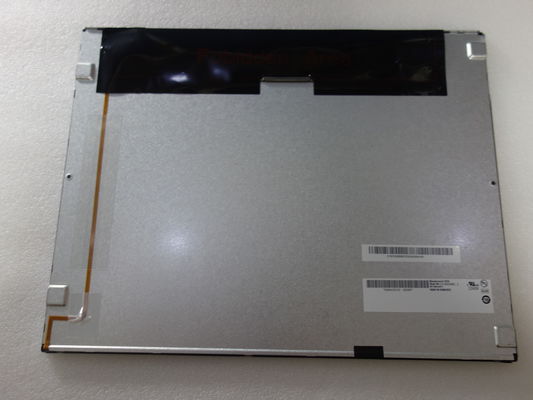

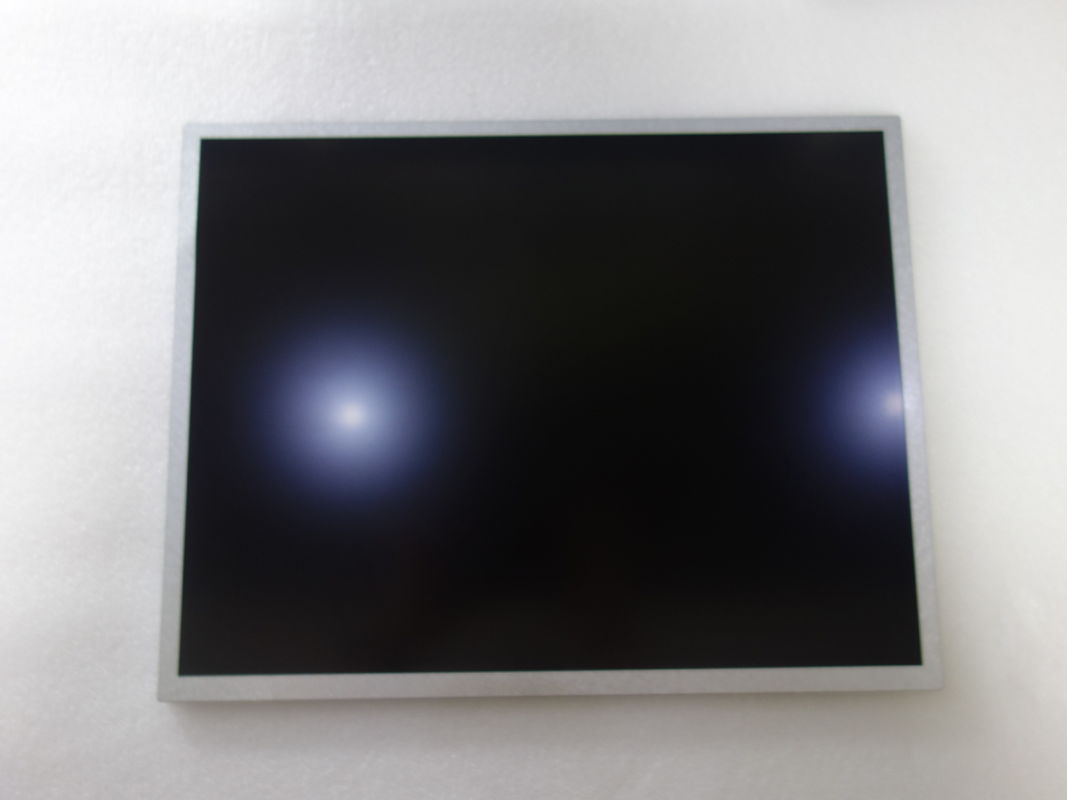

G150XAN01.0 AUO LCD Panel 15" LCM 0.297×0.297mm Pixel Pitch 1G150XAN01.0 AUO LCD Panel 15" LCM 0.297×0.297mm Pixel Pitch 2
